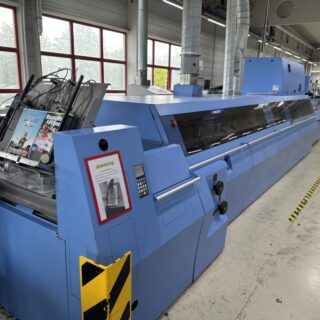

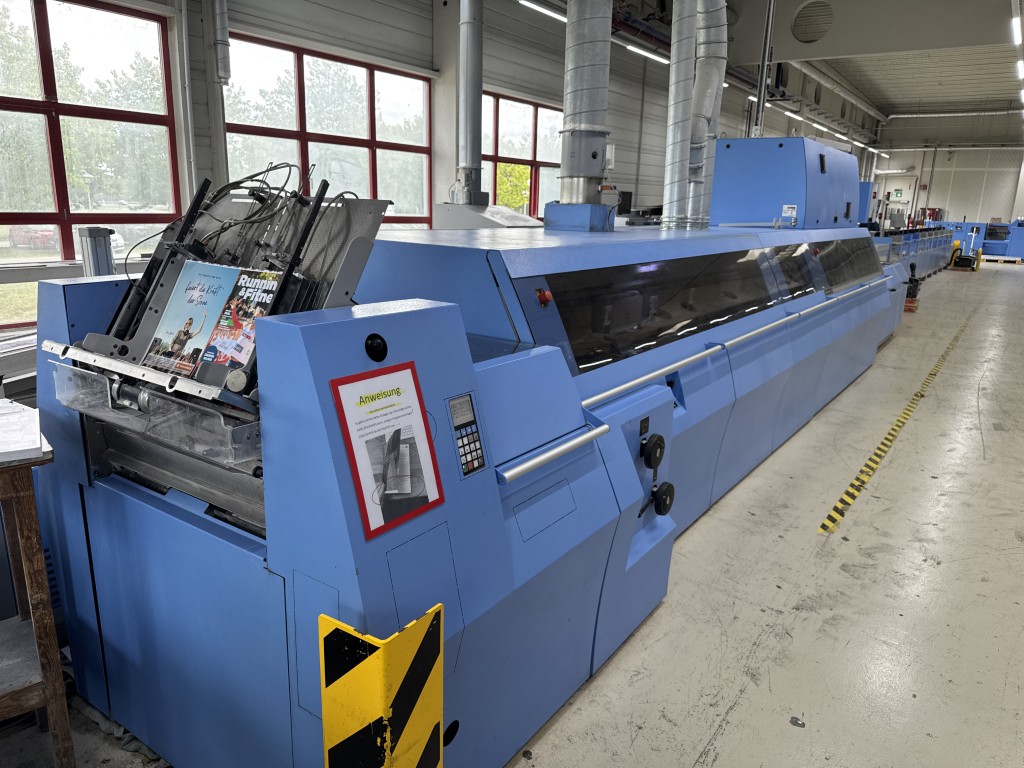

MULLER MARTINI Perfect Binding Line 3026-20 ACORO A6

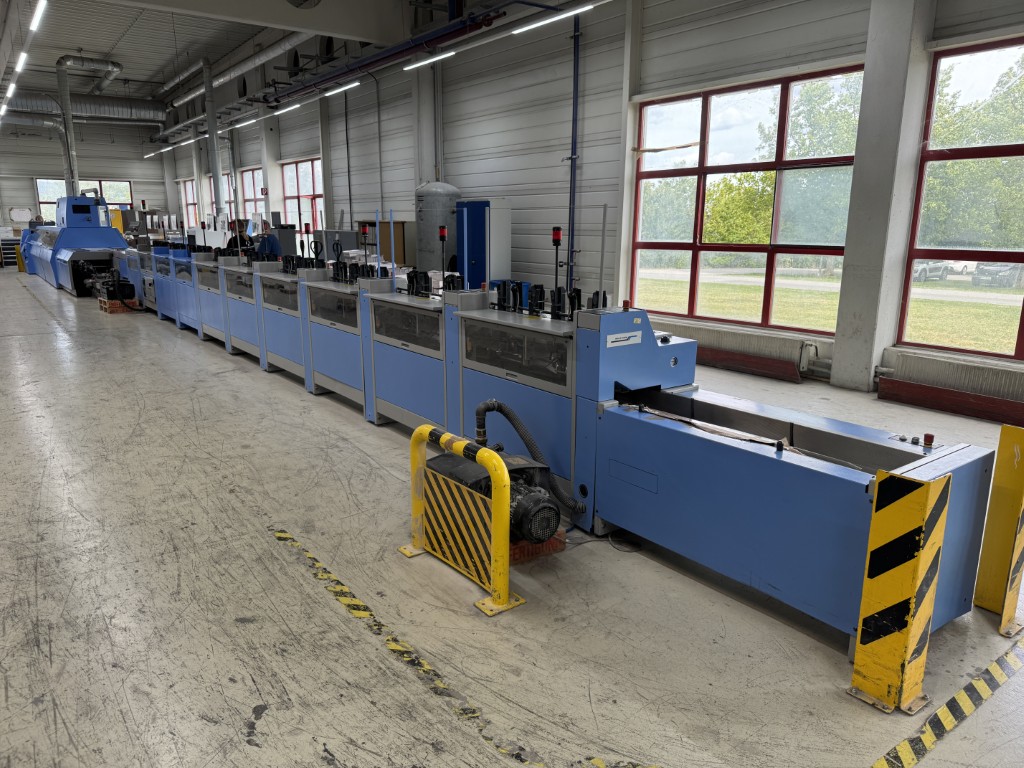

1571 gathering machine

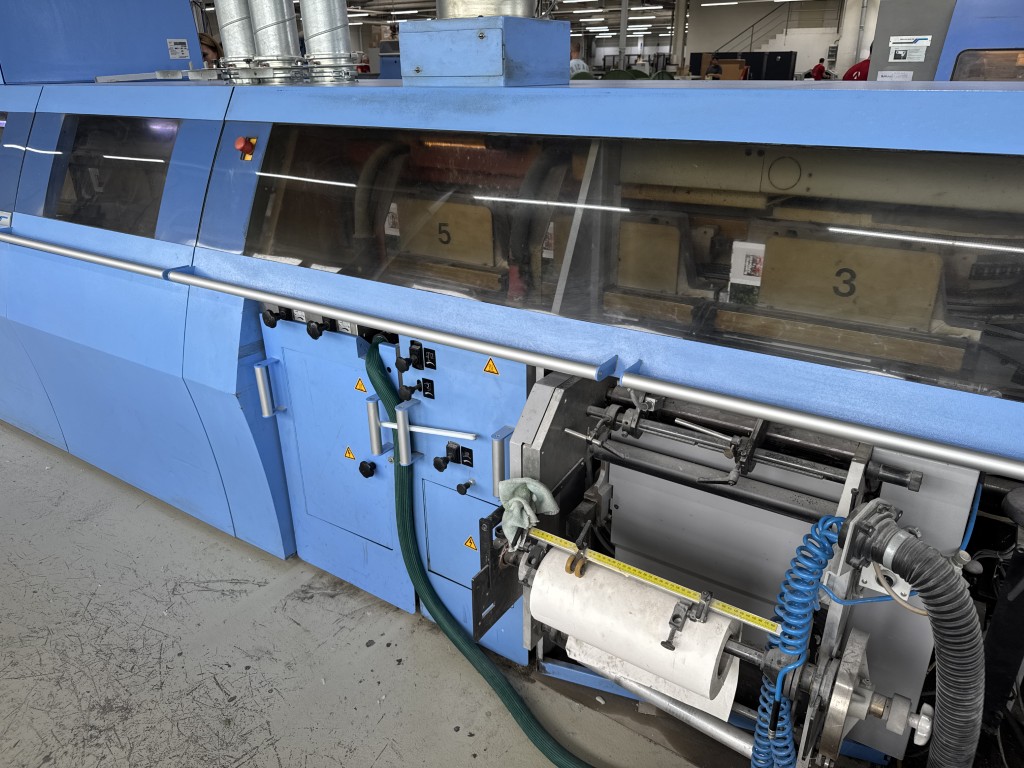

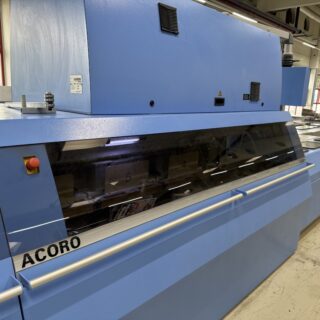

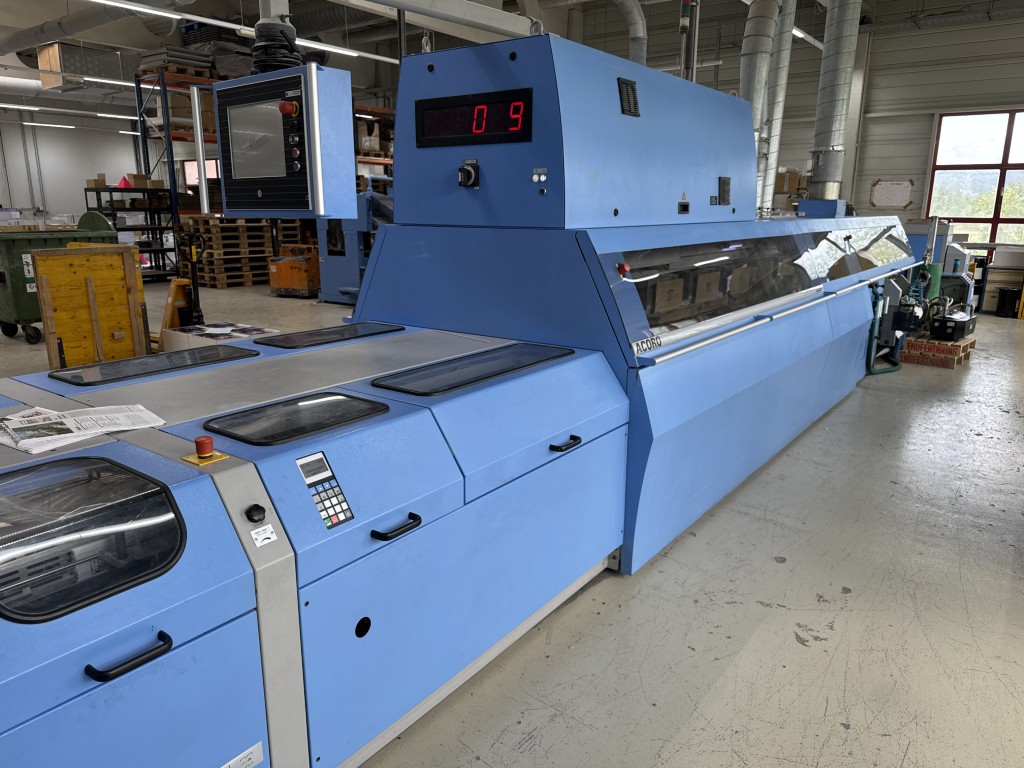

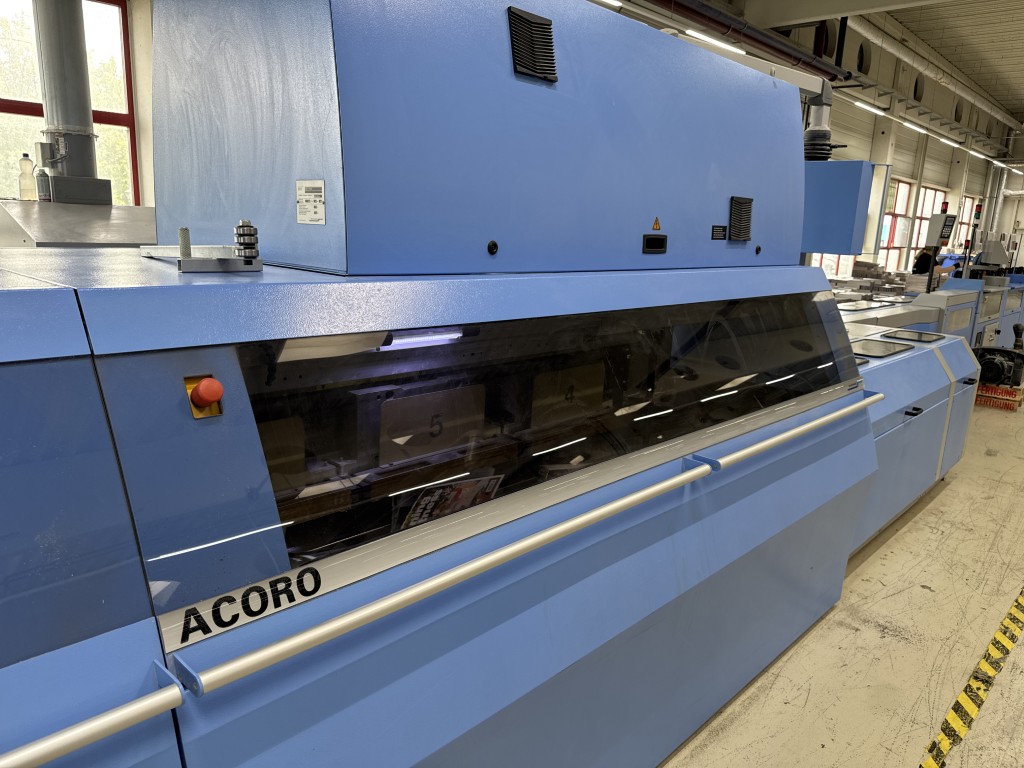

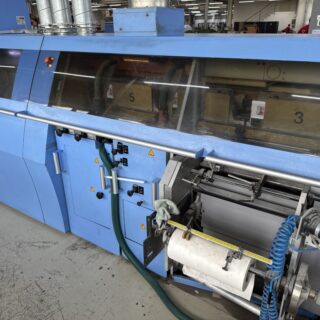

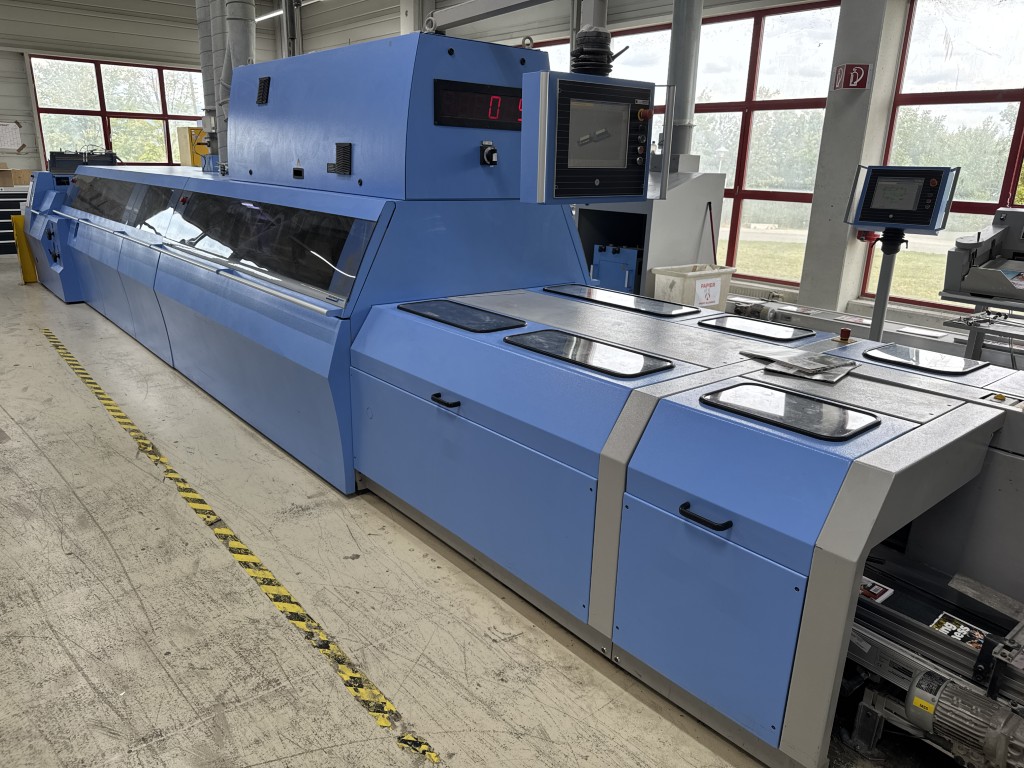

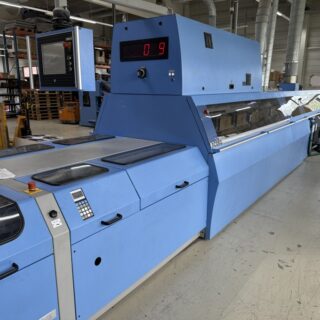

3026-20 ACORO A6 perfect binder

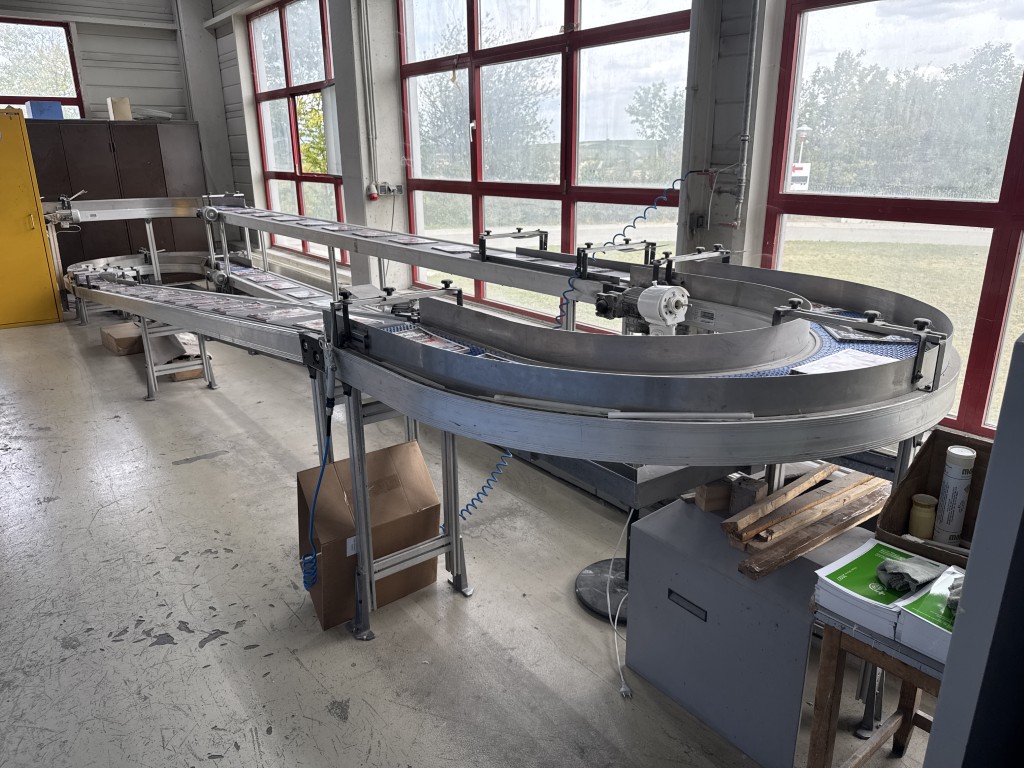

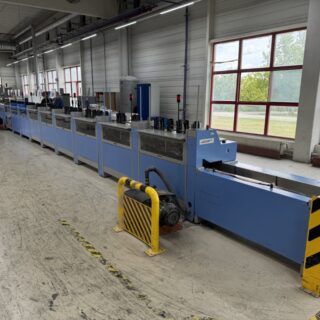

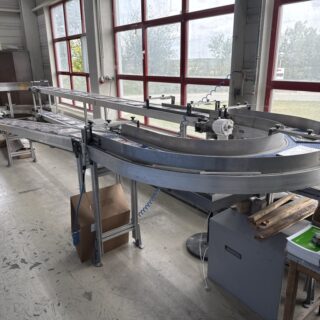

3520 transport and drying line (year 2011 | year 2016)

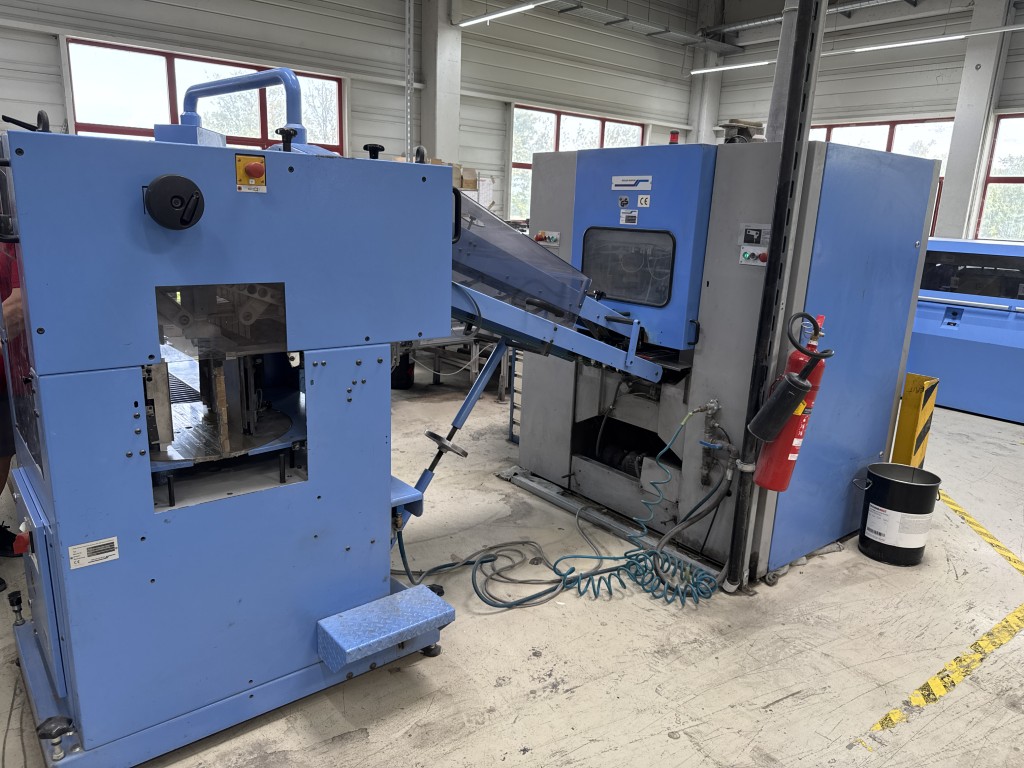

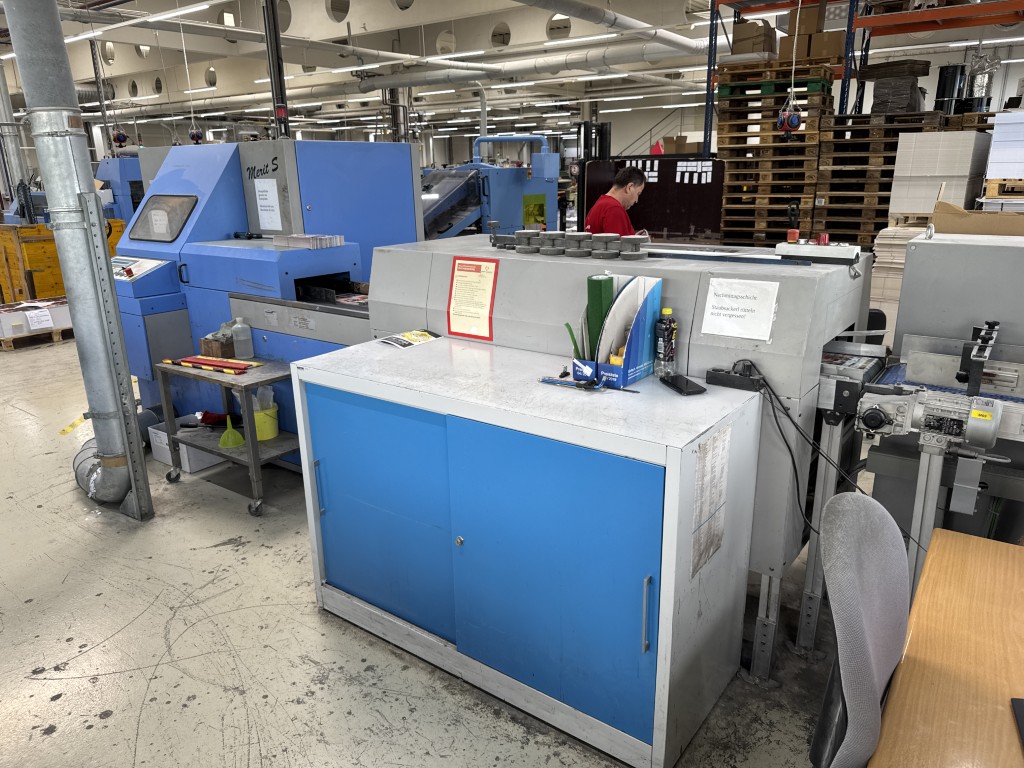

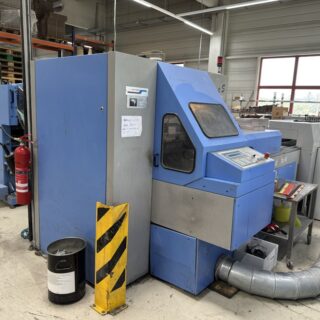

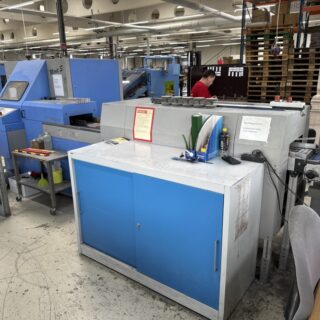

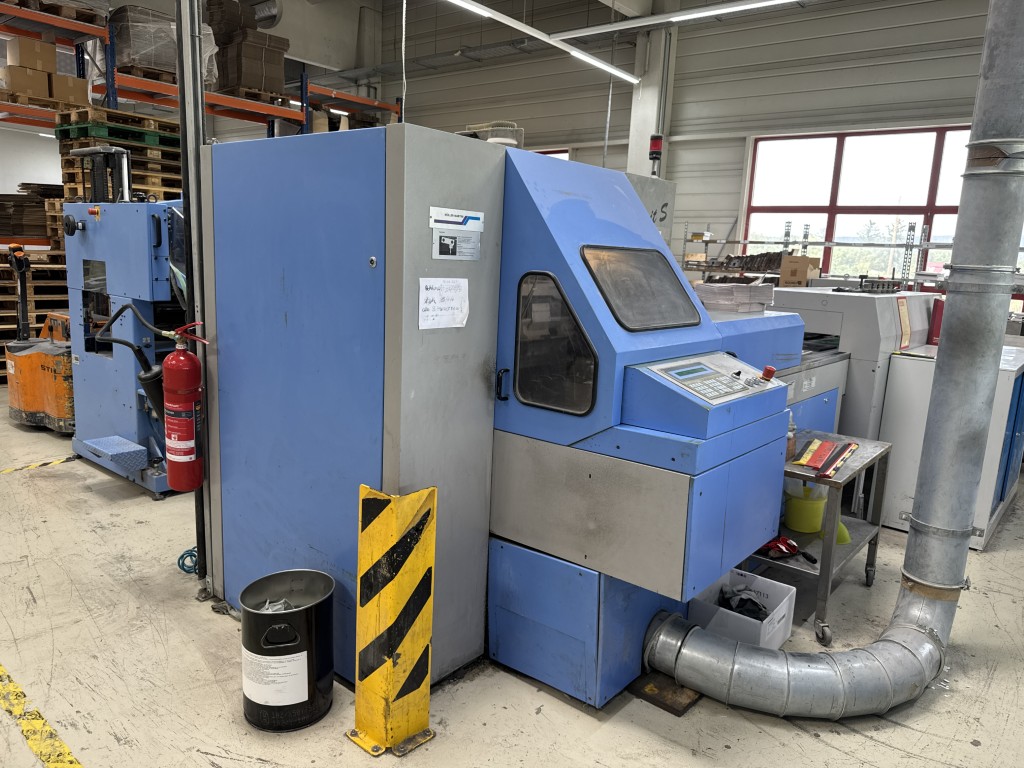

3671 MERIT S three knife trimmer (year 2004)

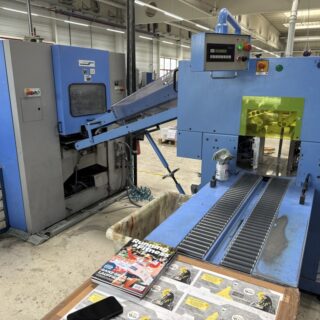

1534 UNO book counter stacker

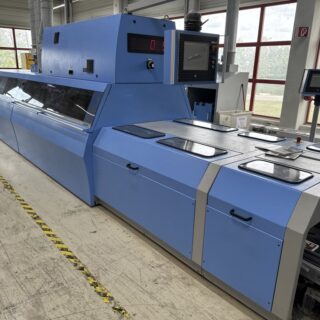

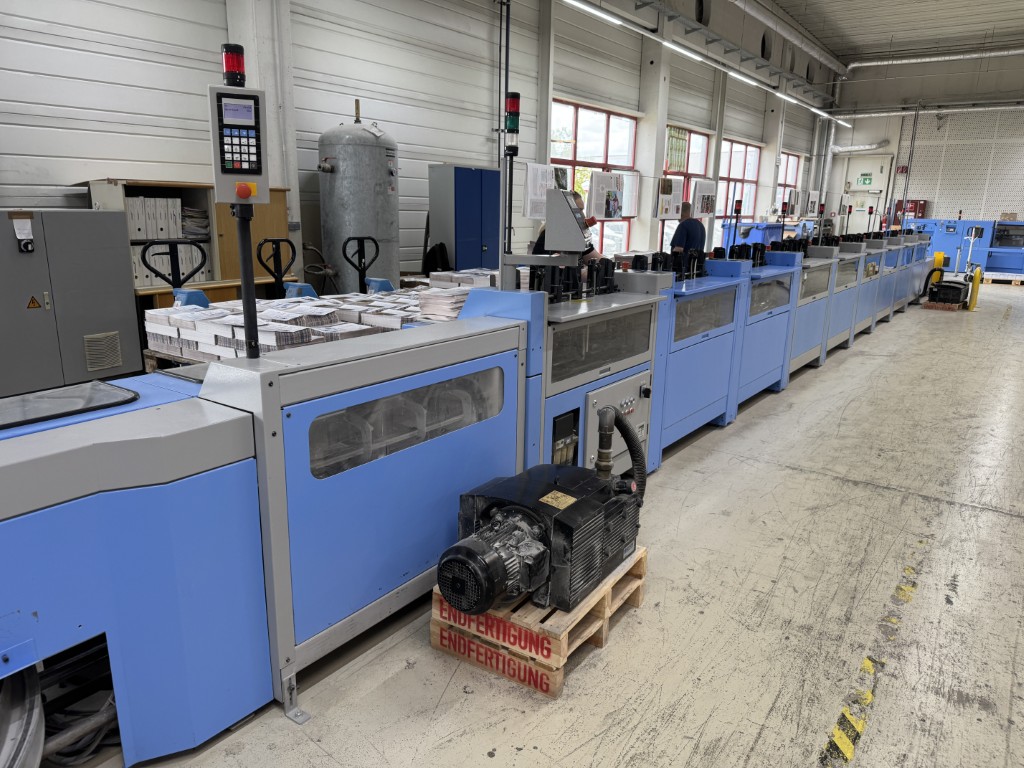

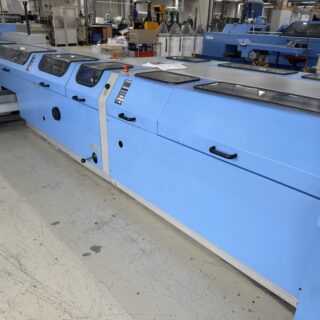

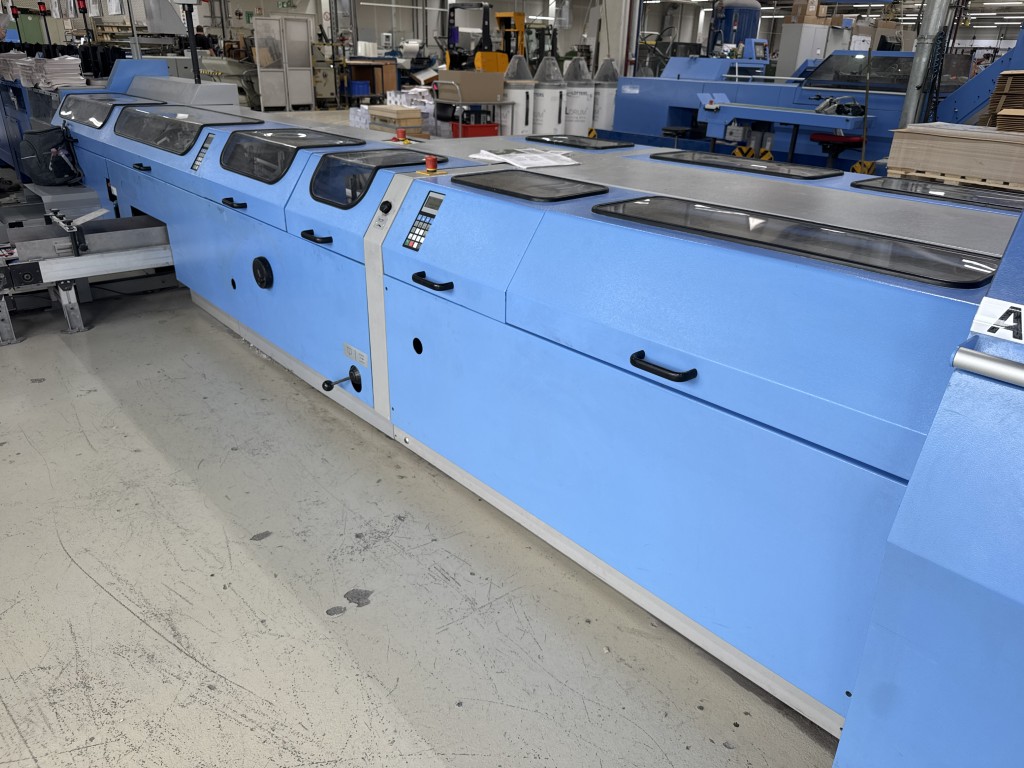

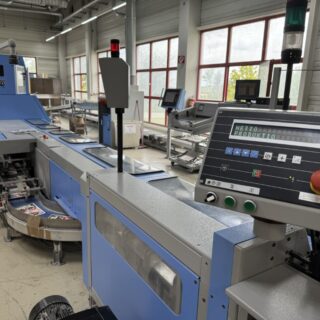

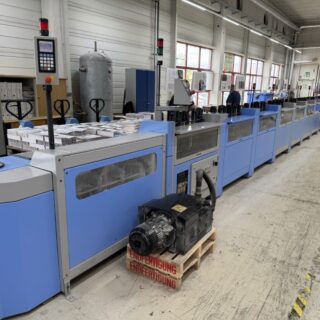

1571 gathering machine
• handfeeding for 1 person
• 18 stations (4 stations thereof from year 2016)
• automatic signature thickness control ASAC and automatic signature type control ASIR3
• reject unit 3715 with delivery conveyor to the right
• set-up element 3641
• transfer to the binder
• 2 vacuump pumps
• 20 clamps
• colour monitor with touch screen
• main milling station
• 2 separate spine preparing units (without dust exhaust system)
• spine gluing station
• hotmelt spine gluing unit, interchangeable
• premelter ICS-A C80 for hotmelt spine gluing unit
• PUR spine gluing unit, interchangeable
• smelting unit MOD 40 POT for PUR spine gluing unit
• side gluing station
• hotmelt side gluing unit
• premelter CLS C18 for hotmelt side gluing unit
• gauzing station
• drum cover feeder with vacuum pump
• scoring station for 4 scores
• 2 pressing stations
• lay down device to the left

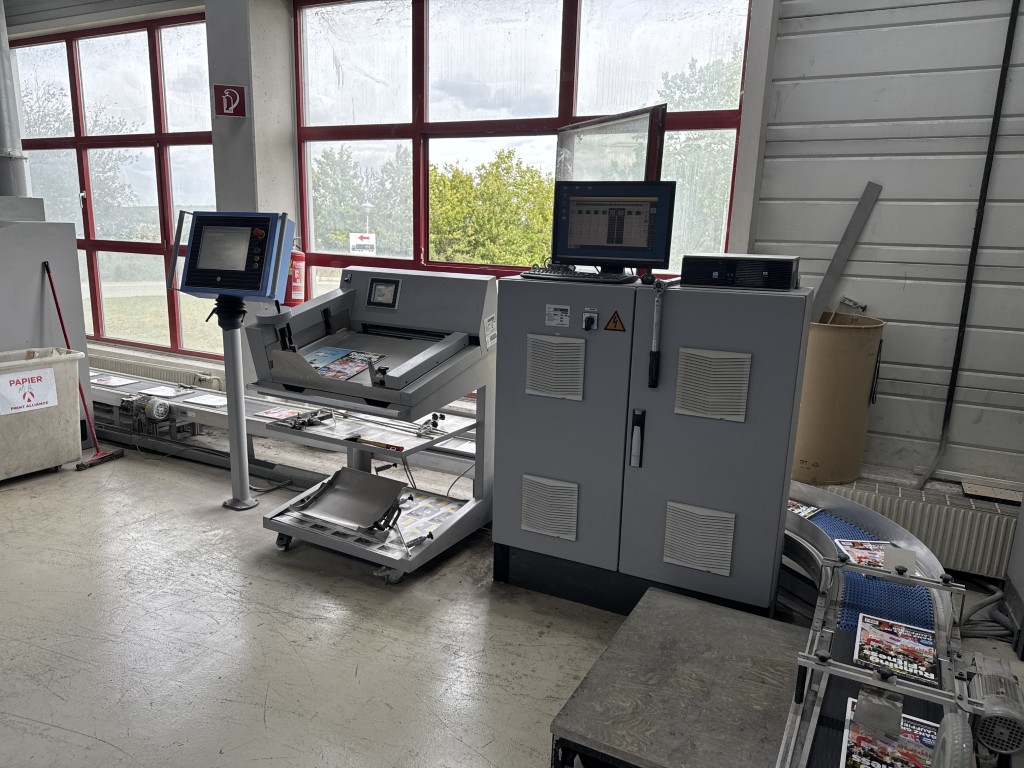

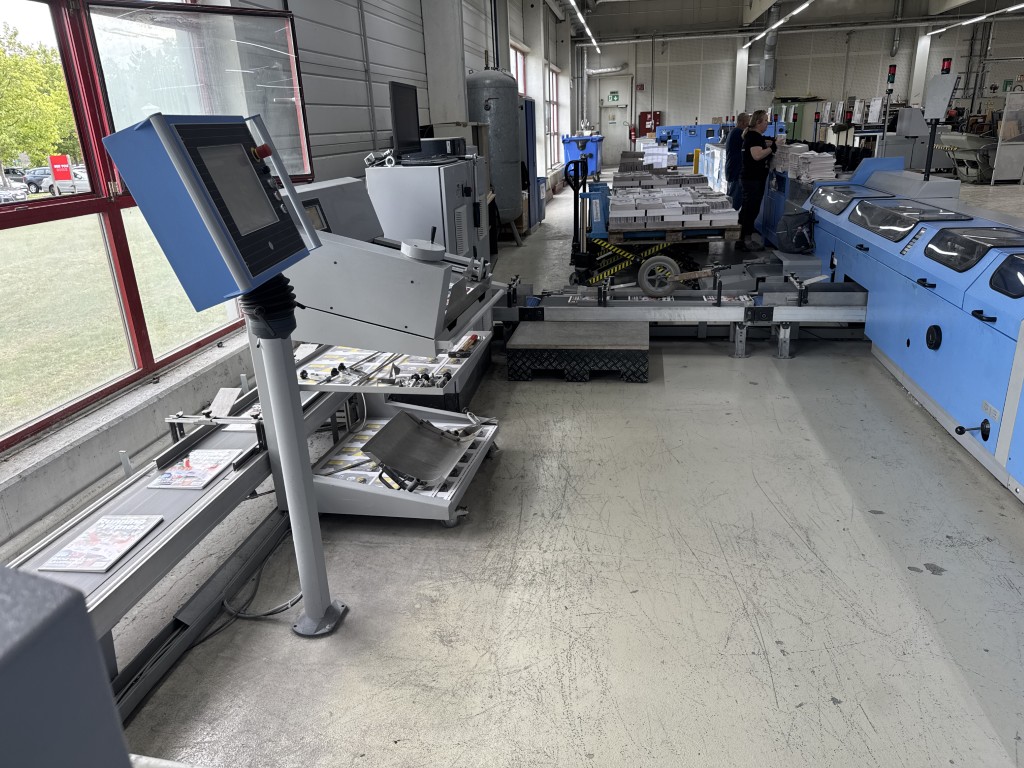

• book measuring table BOOK DATA CENTER type BDC
Technical specifications:
mechanical speed: up to 6.000 cycles/h
size range max.: 430 x 320 x 60 mm
size range min.: 140 x 100 x 2 mm
• length: approx. 40 meters
• with shingle function
• incl. emergency delivery with delivery conveyor to the right
• right hand infeed
• standard changeable cutting tables (no. 4 – 17)
• knife setting gauge
• 2 set of knives
Technical specifications:
mechanical speed: up to 4.000 cycles/h
size range uncutted max.: 384 x 320 mm
size range uncutted min.: 140 x 103 mm
size range cutted max.: 304 x 310 mm
size range cuttes min.: 136 x 100 mm
book thickness: 2 – 80 mm
• roller delivery table to the right
Technical specifications:
mechanical speed: up to 16.000 cycles/h
size range max.: 500 x 320 x 80 mm
size range min.: 140 x 100 x 2 m
