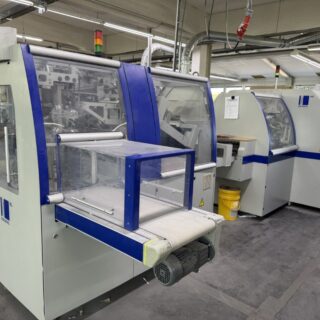

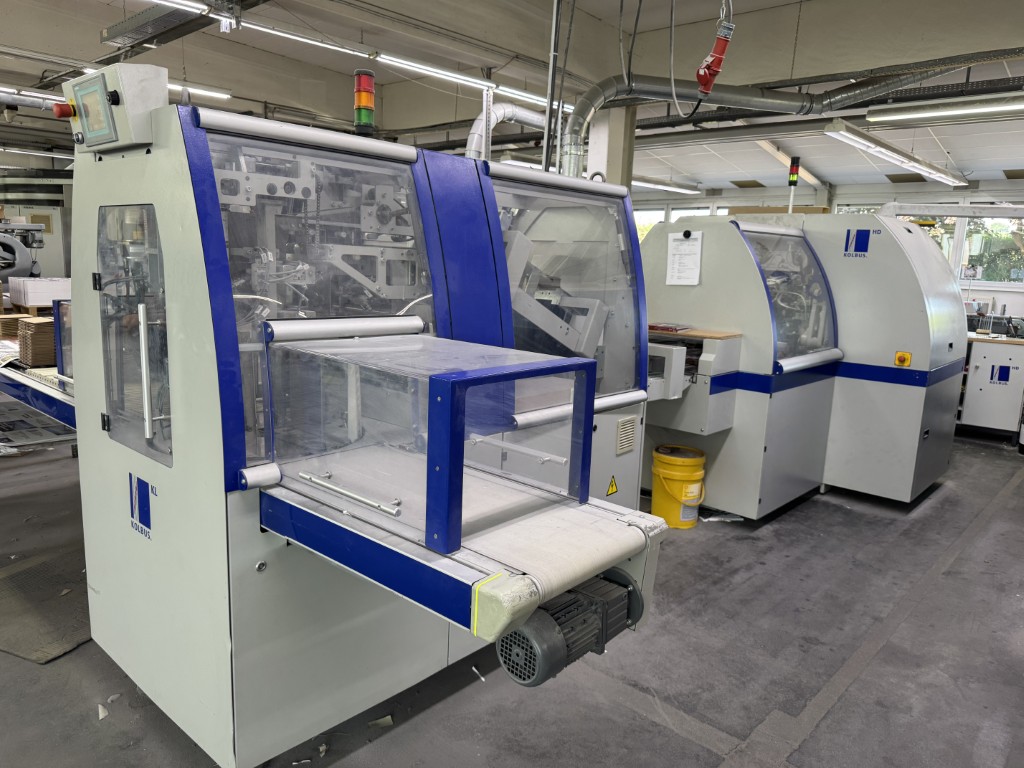

2005 Kolbus KM 473 Perfect Binding Line

The KOLBUS KM 473 perfect binder in combination with the ZU 841 gathering machine is a
variant that meets short-term market development with quality, speed and versatility.
The innovative technology and high flexibility make it possible to switch on the fly between
different large print runs and special products.

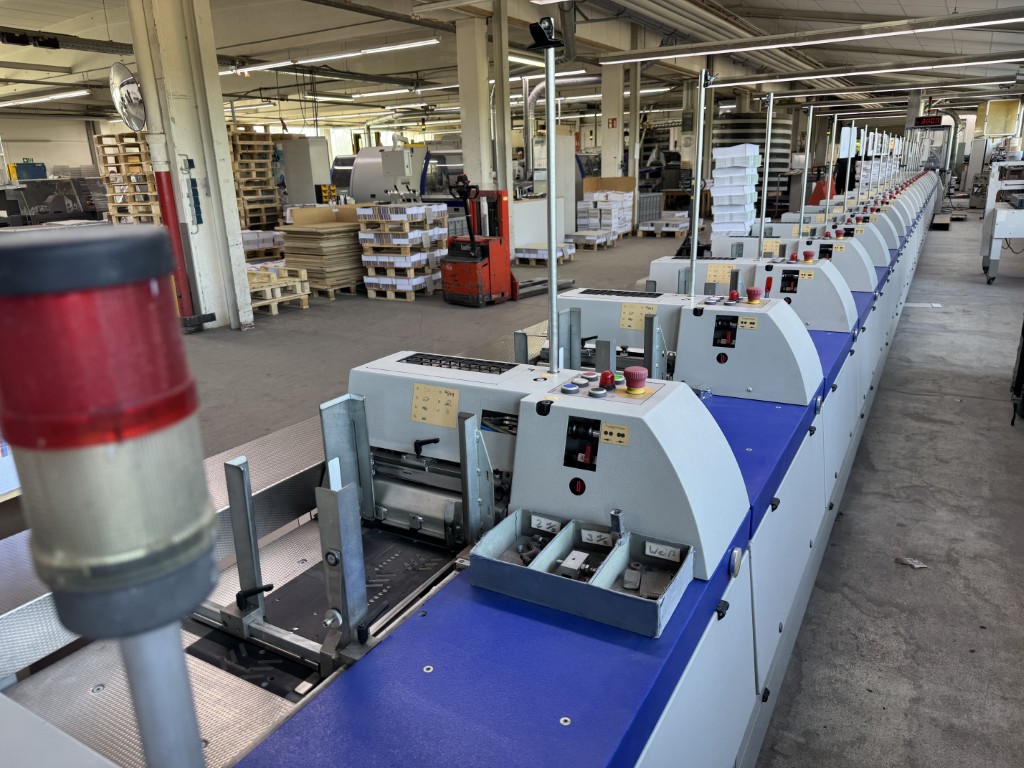

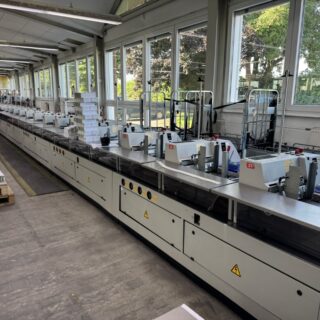

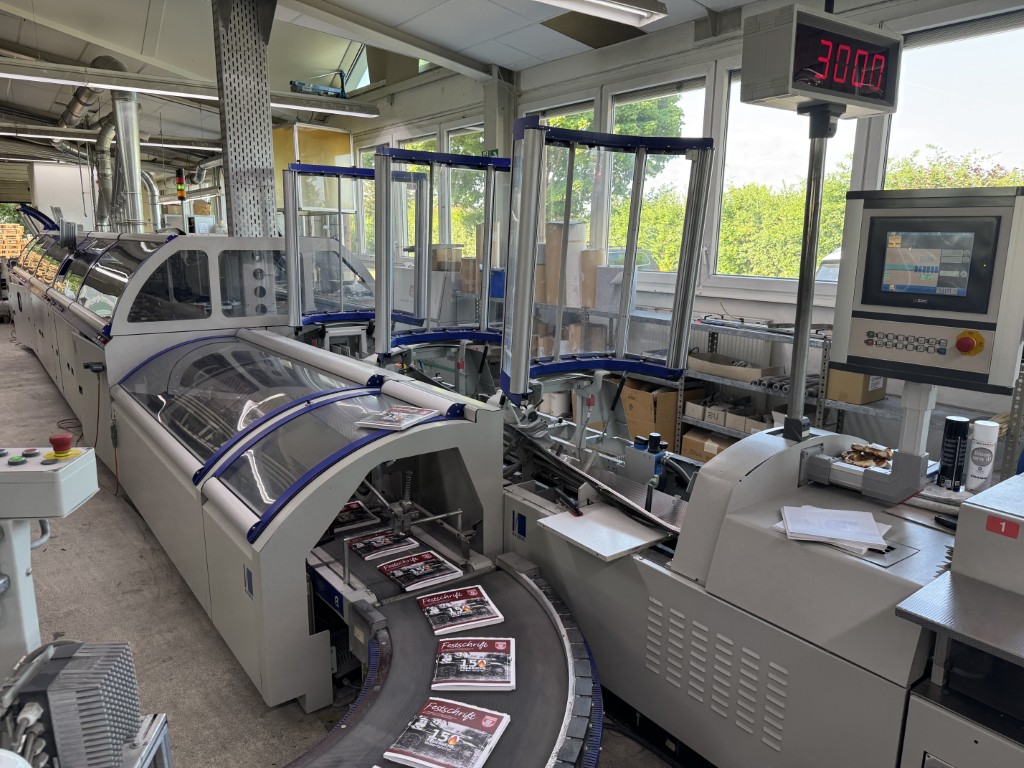

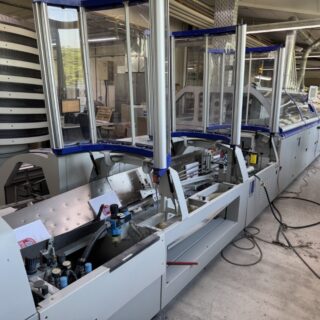

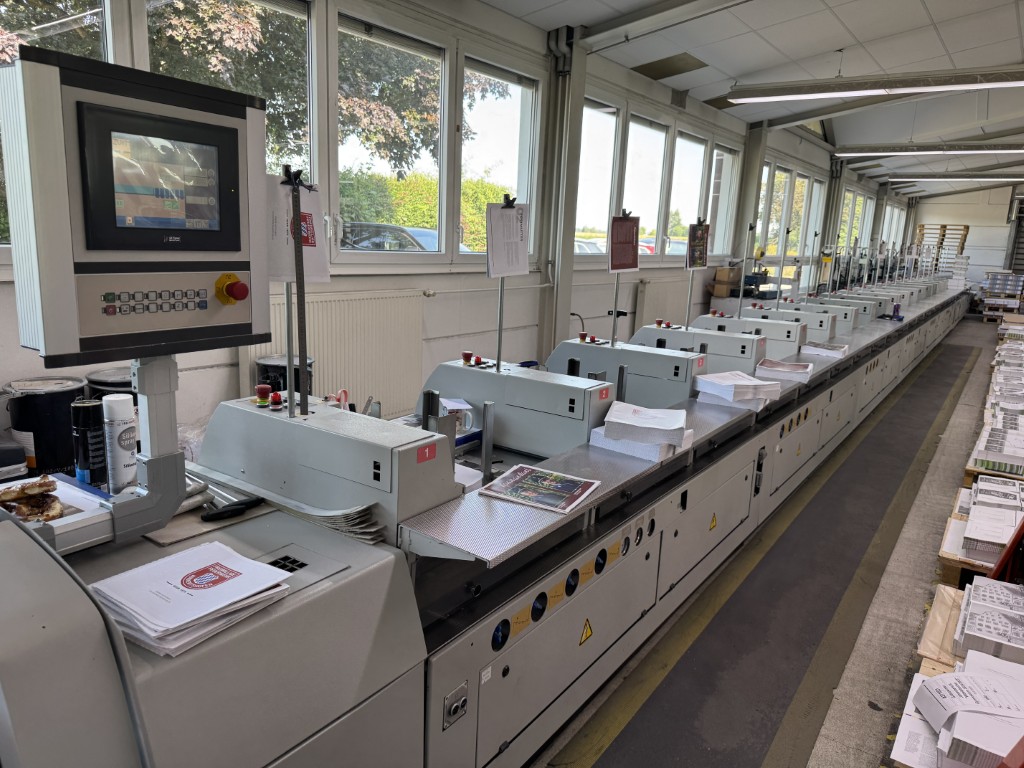

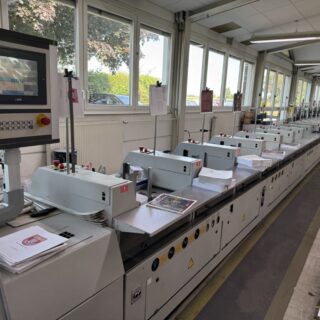

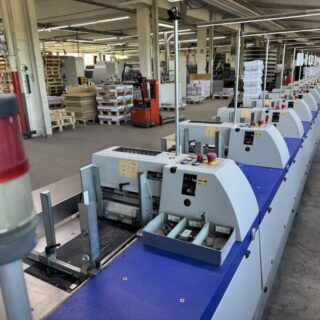

Kolbus ZU 841.A gathering machine

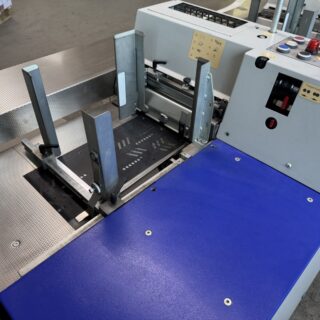

• handfeeding with block positioning conveyor
• 22 stations basic frame
• 1-15 standard feeder with barcode recognition system | signalynx
• 16-20 standard feeder with optoelectronic signature recognition system
• transfer into the binder
• pressure-vacuum pumps with Variair system

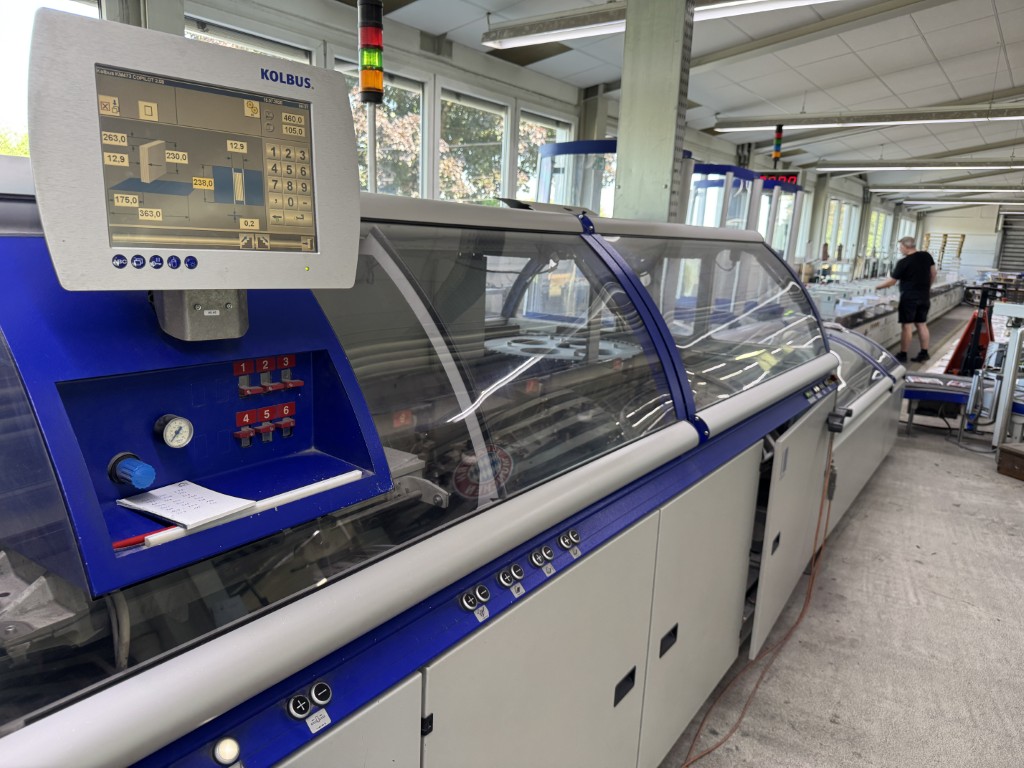

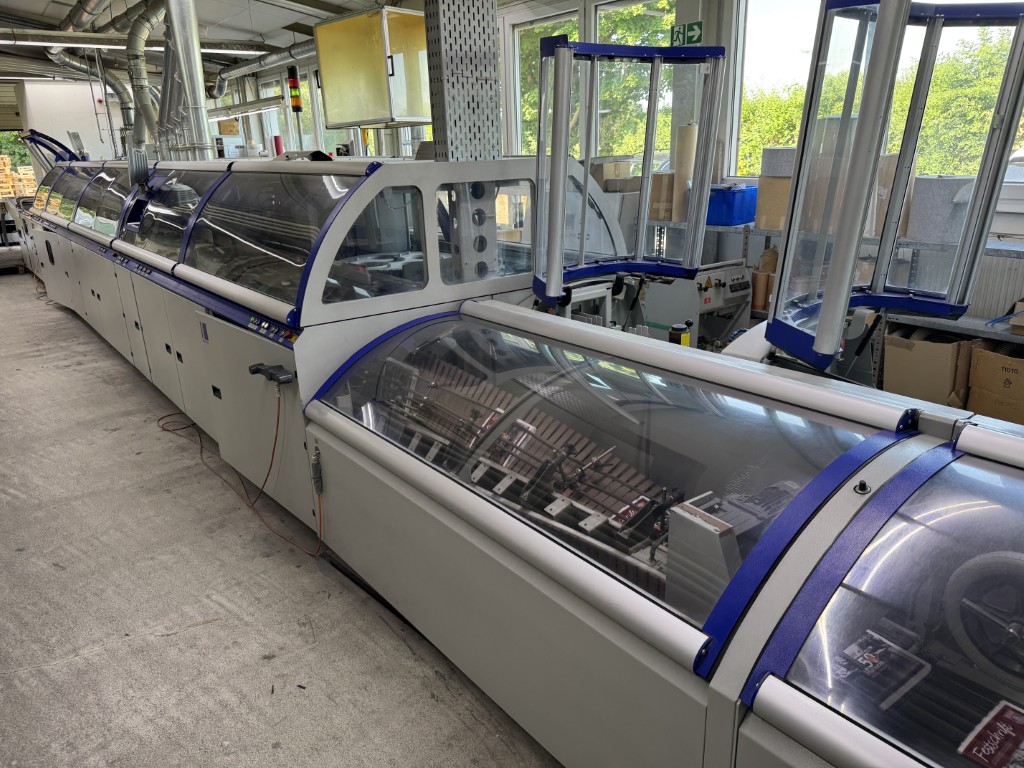

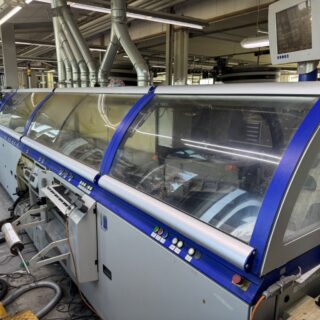

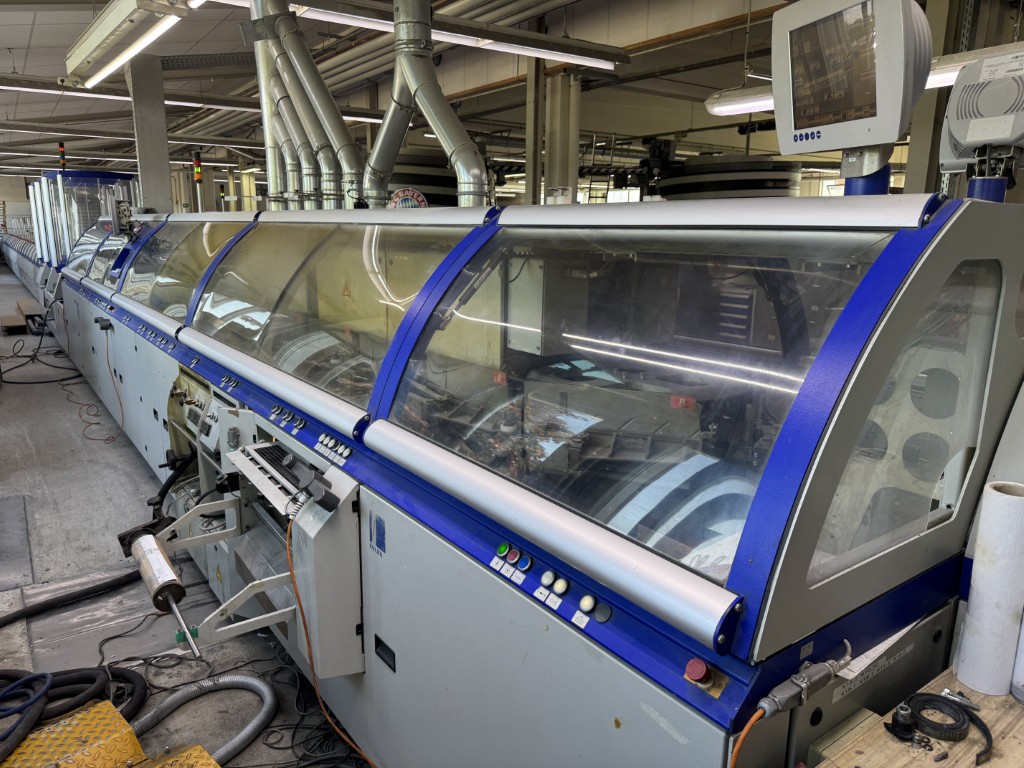

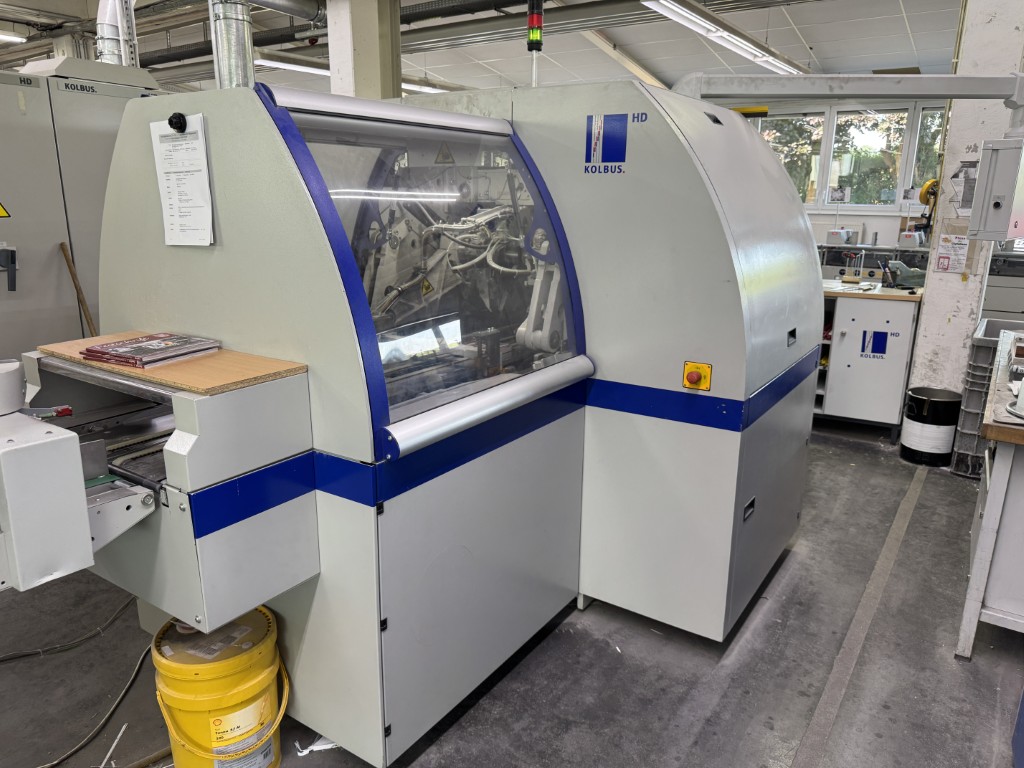

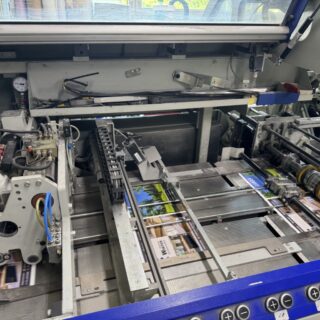

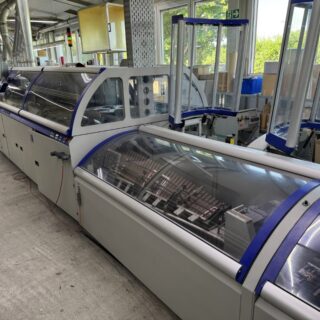

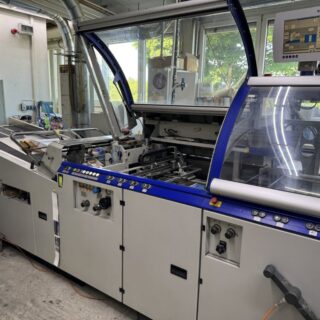

Kolbus KM 473 Perfect Binder

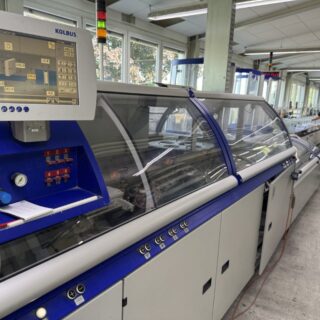

• copilot system with touchsreeen
• 27 clamps
• main milling station
• 2 spine preparation stations | equalizing milling and micro notching
• brushing station
• without dust extraction system (machine was connected to a central dust extraction system)
• hotmelt spine gluing unit
• premelter LH 370
• hotmelt side gluing unit

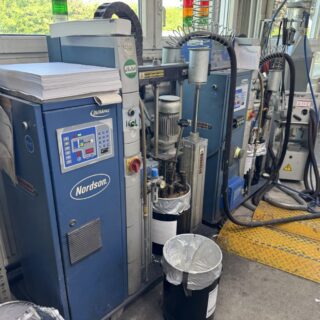

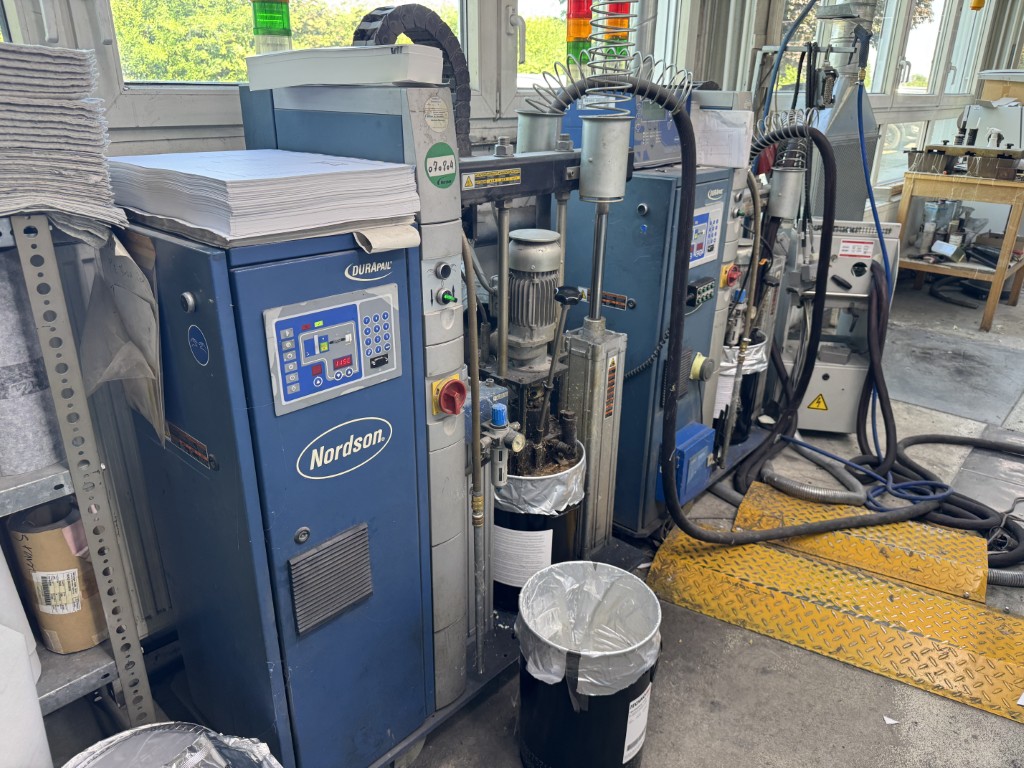

• PUR spine gluing unit incl. Nordson Durapail premelte
• preservation unit Best for PUR
• lining station

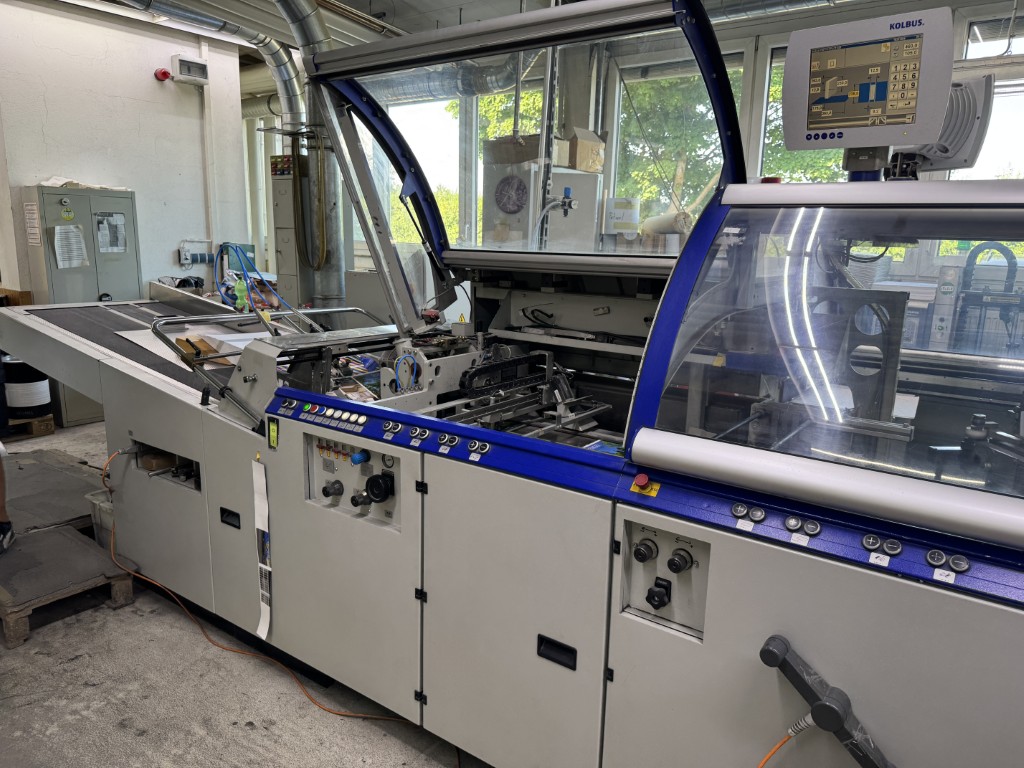

• cover feeder SAL 411.A incl. miss- and double sheet control
• 2 pressing stations

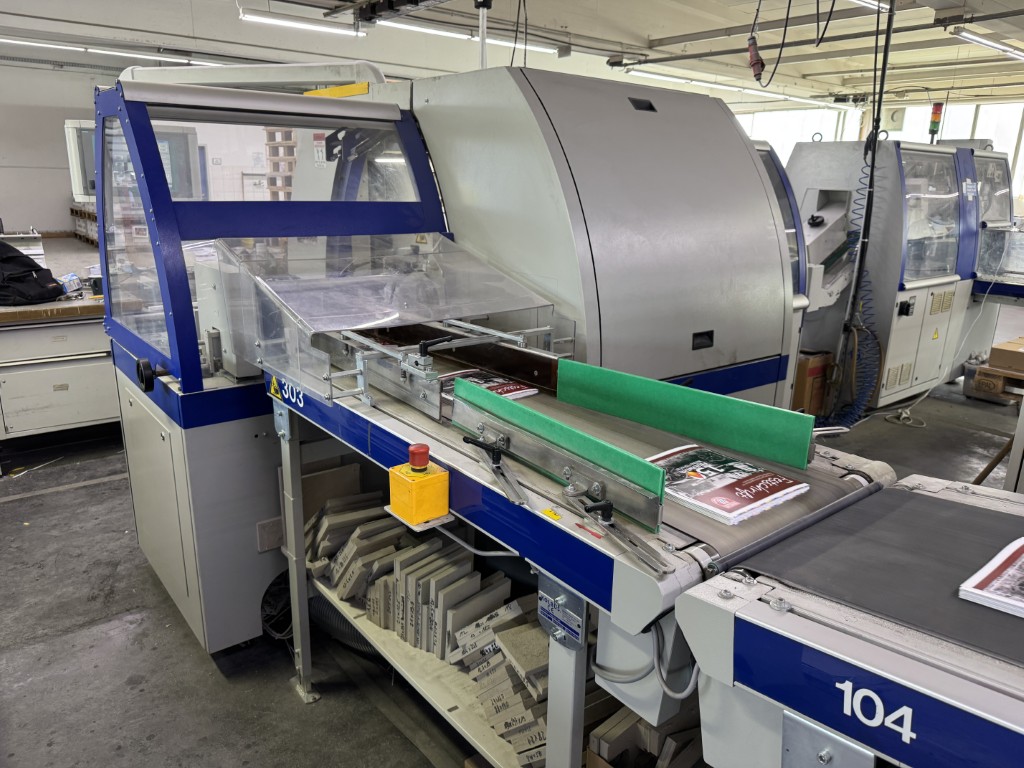

• gripper carriage delivery
• lay down device

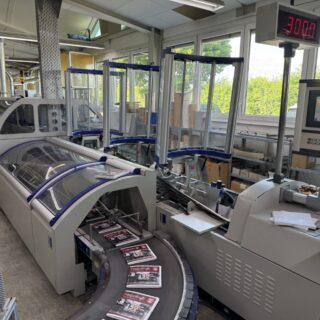

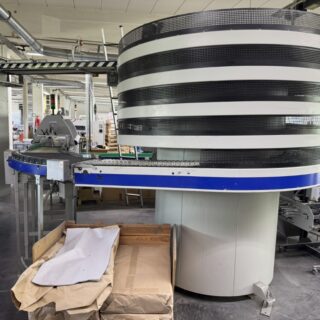

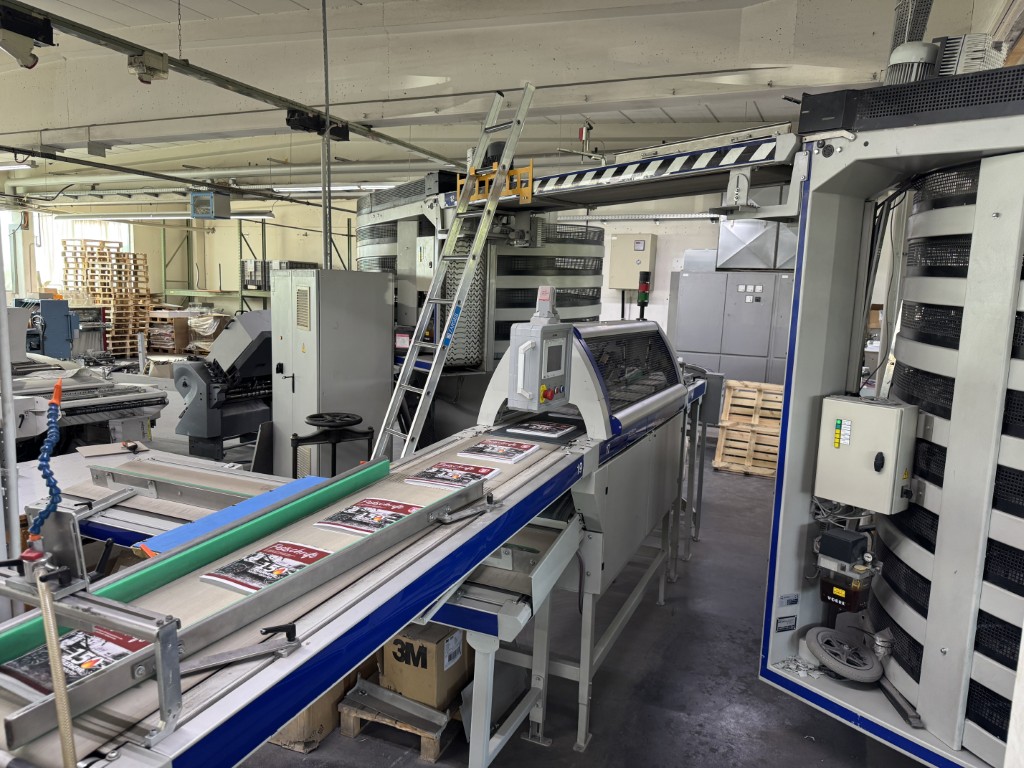

Kolbus conveyor system

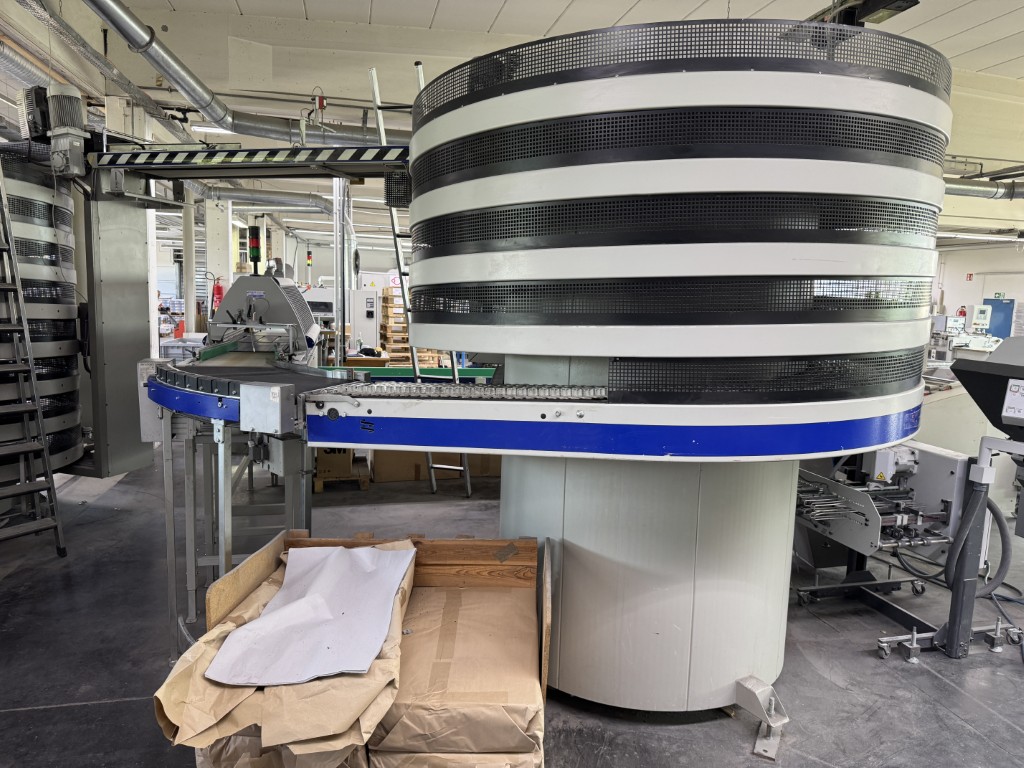

transport and drying line
incl. 2 cooling tower and emergency delivery
