DA 270 Case-maker
Made in 2002, ref. 13090
DA 270 Case-maker
Ref #:
Year Manufactured:

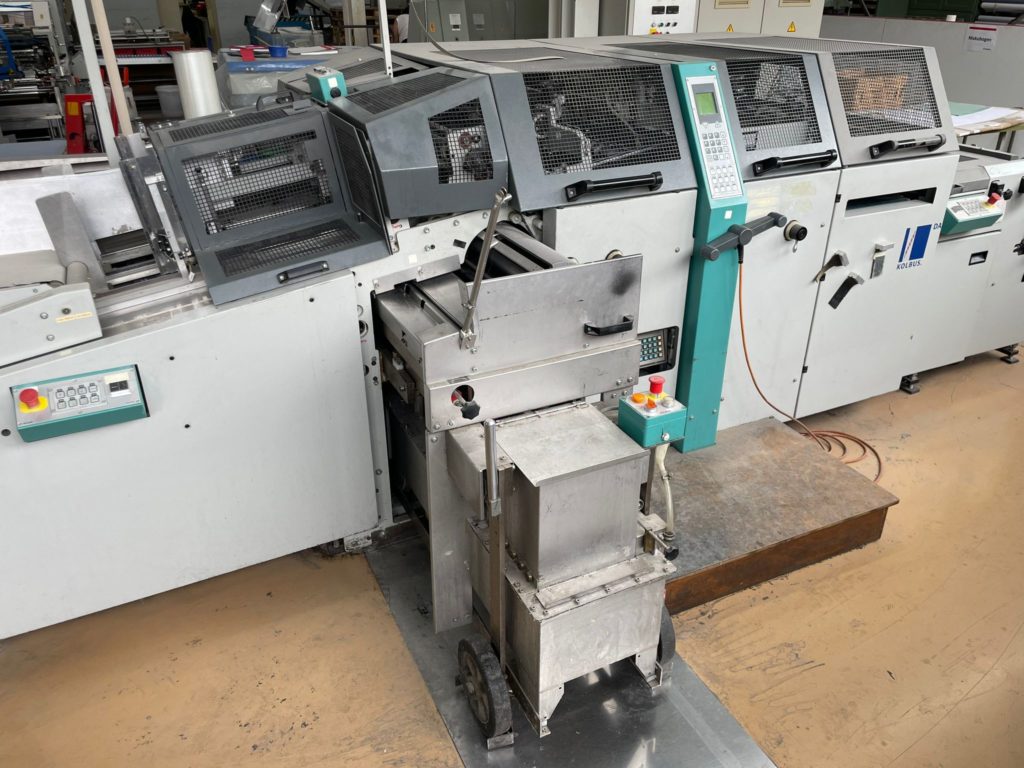

Kolbus DA 270 Case-maker

– cloth feeder for non-stop operation with pile magazine, max. stacking height 160 mm
– board pre-stacking conveyor (1.700 mm) for automatic magazine reloading (stream and pile feeding)
– canter strip infeed for the spine strip made of roll material, holding capacity for two canter strip rolls, longitudinal and cross cutting device
– miss cloth control during the separation process
– motorized adjustments with digital displays, programmable automatic setting, fault indication
– device for inside lining with hot glue
– viscosity control device
– glue application adjustment by outside control
– pressing roller device for crease-free connection of the cover material with boards and spine strip
– movable gluing station for processing hot-glue with glue preparation unit in the premelter, heated glue application roller and scraper roller, cloth cylinder with grippers and exchangeable plate for rubber pad
– device for producing padded cases
– automatic case counter
– single case request for control purposes
– counter stacker delivery with roller conveyor special equipment: – board canter strip magazine
– chopper for the center strip waste
– device for automatic pasting and changing of endless spine strip with the machine running

Contact Us About:

Ref #: 13090
