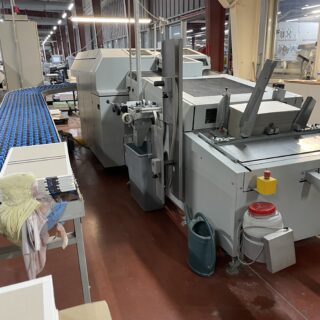

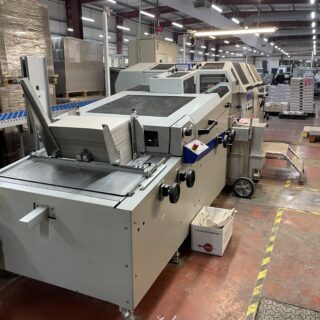

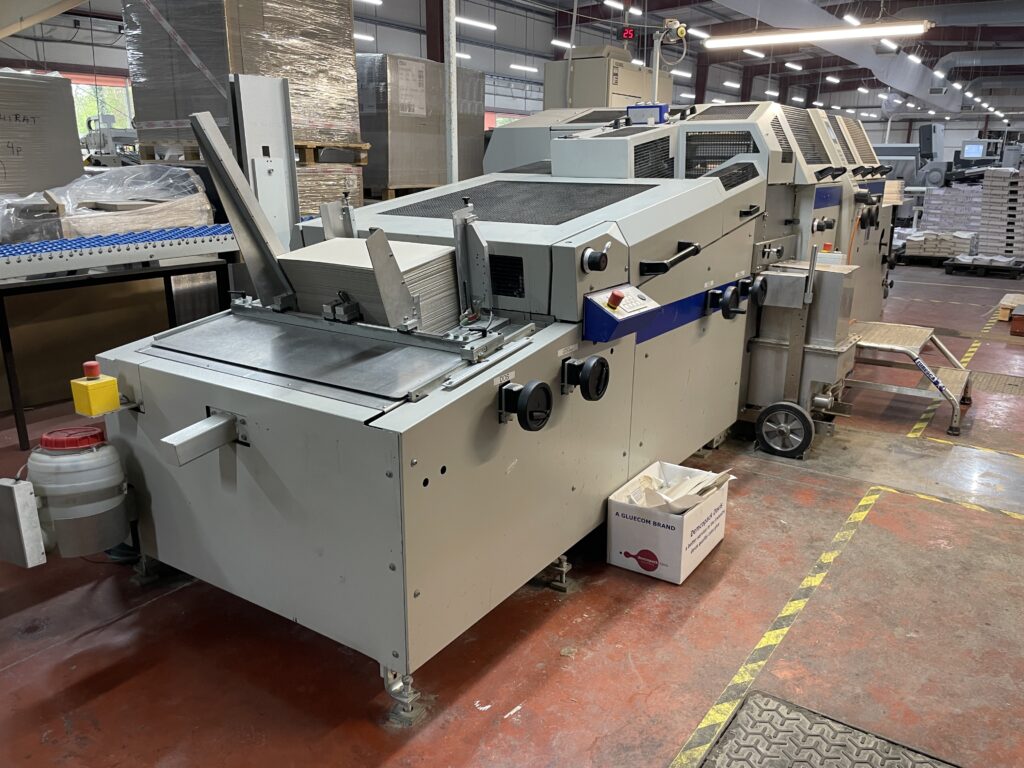

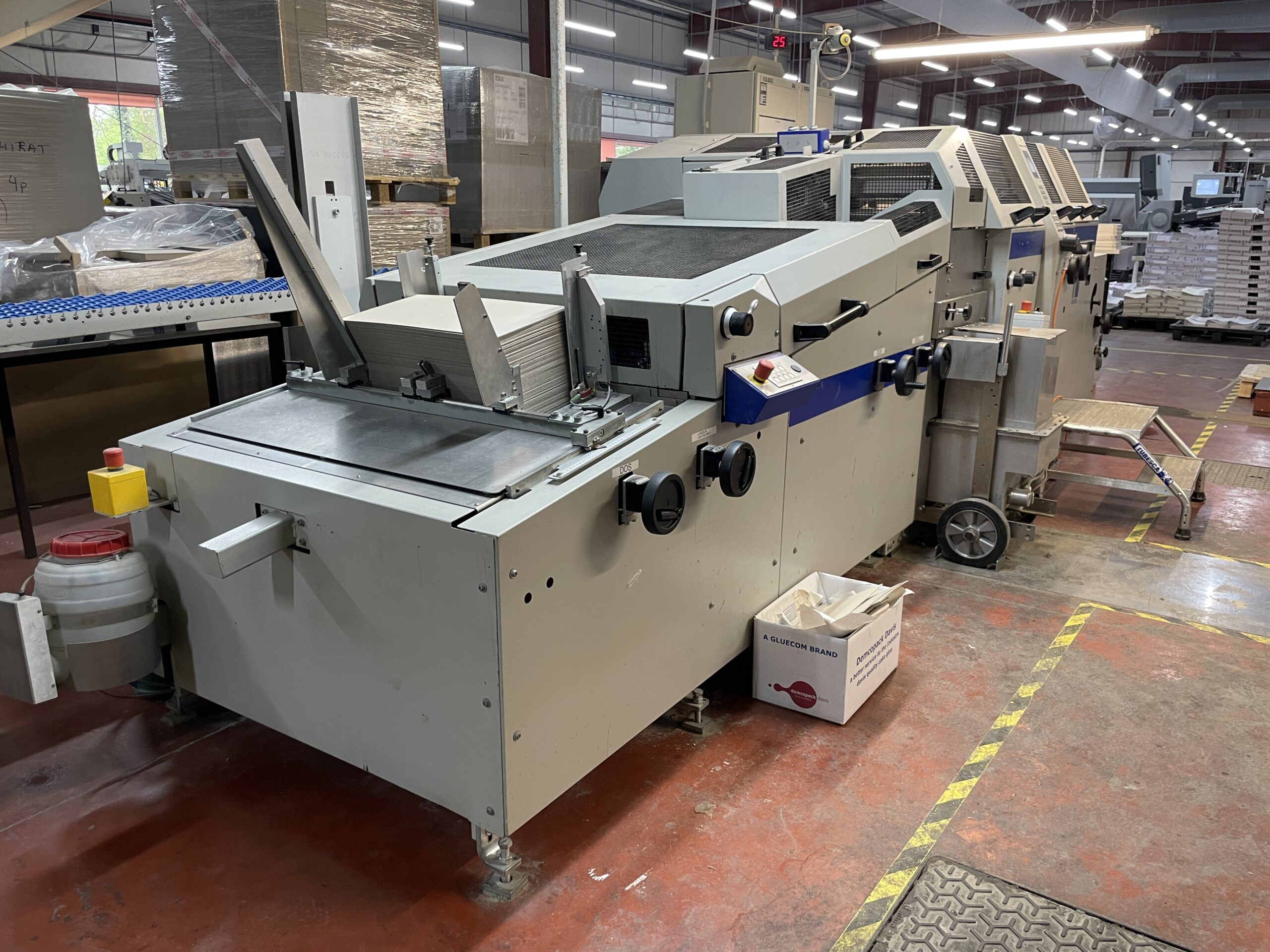

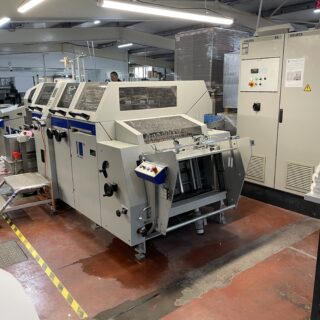

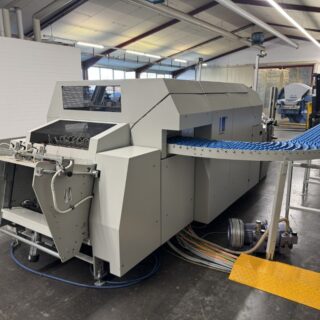

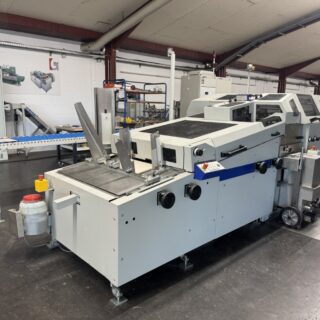

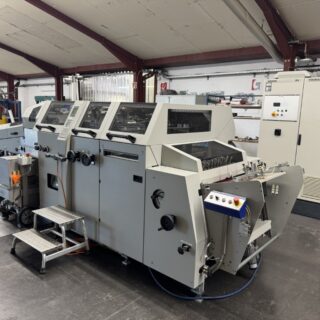

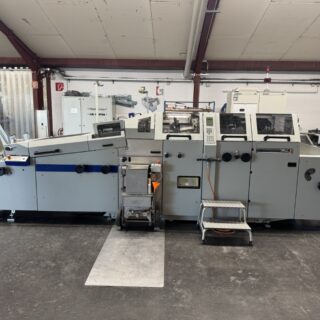

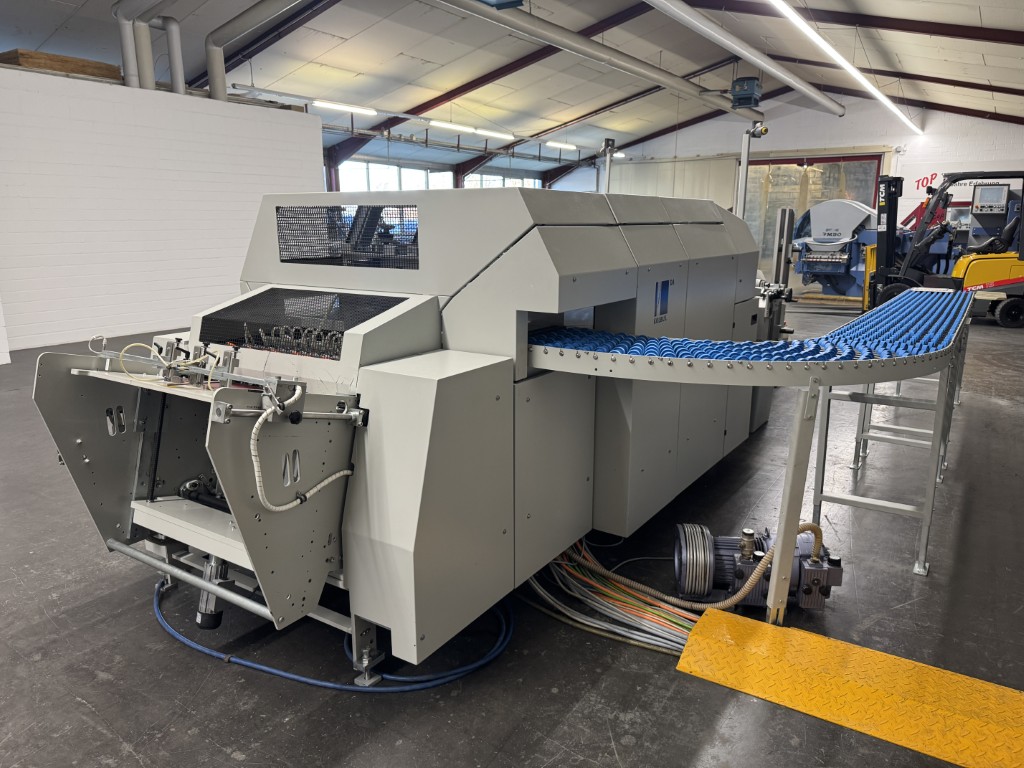

Kolbus DA 260 Casemaker

KOLBUS Casemaker DA 260 with board cutting device PS
year 2011
For fully automatic production of book cases, files, display cards, calendar backs or game boards.

Configuration:

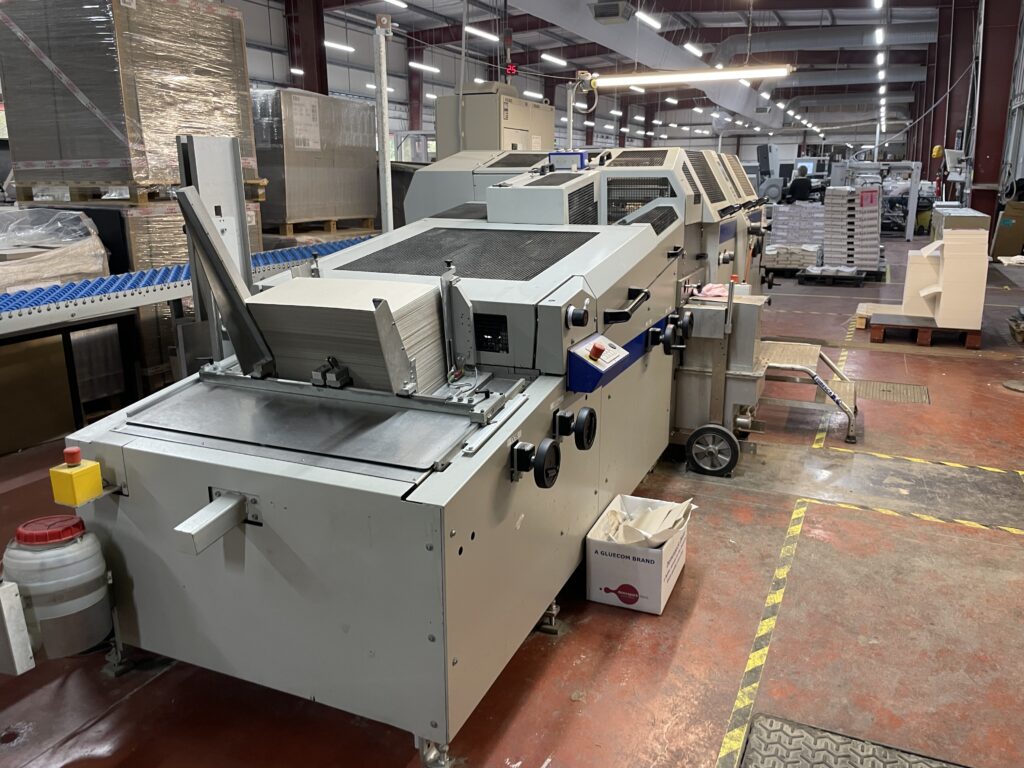

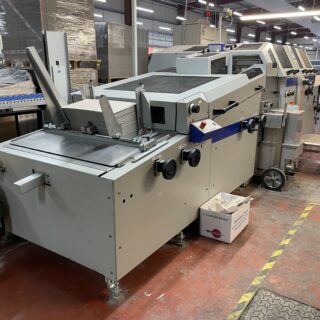

• board magazine for manual loading
• cloth feeder for non-stop operation with pile magazine, max. stacking height 160 mm
• miss cloth control during the separation process

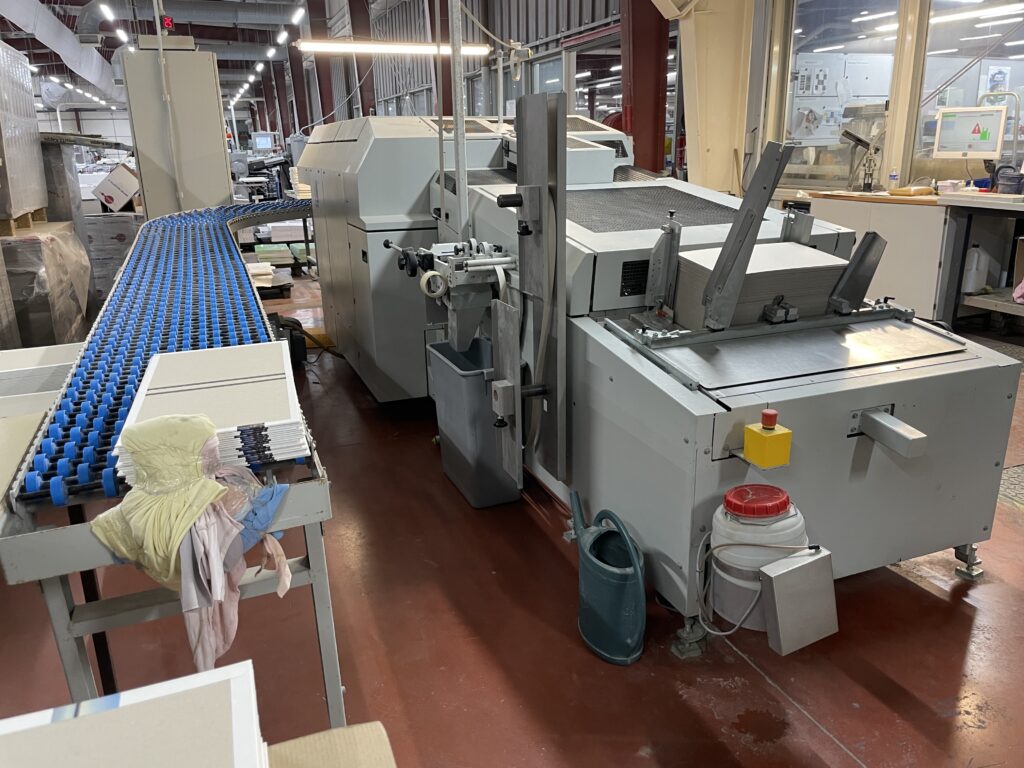

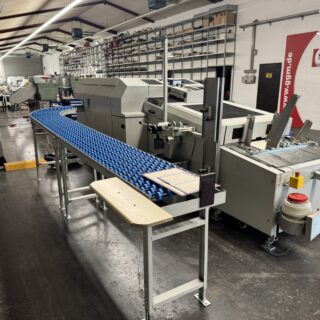

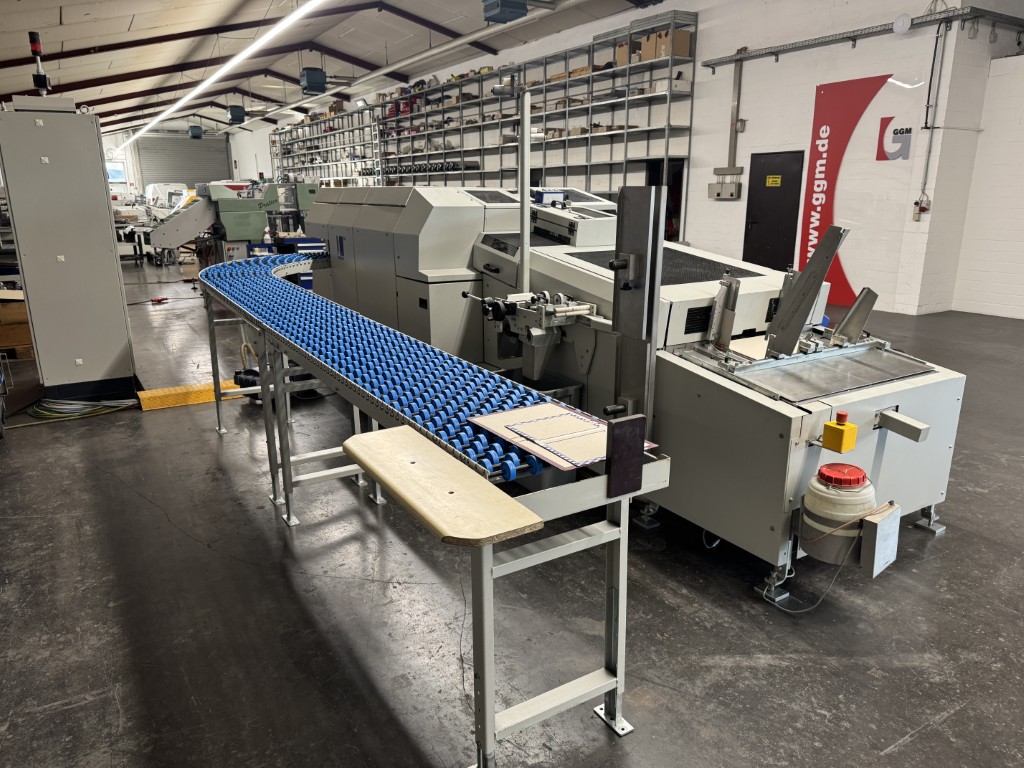

• counter stacker delivery with following roller conveyor incl. table

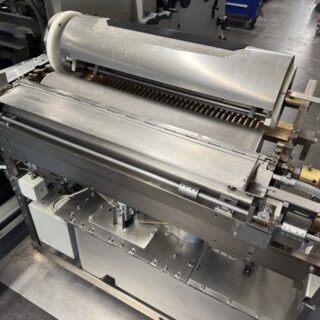

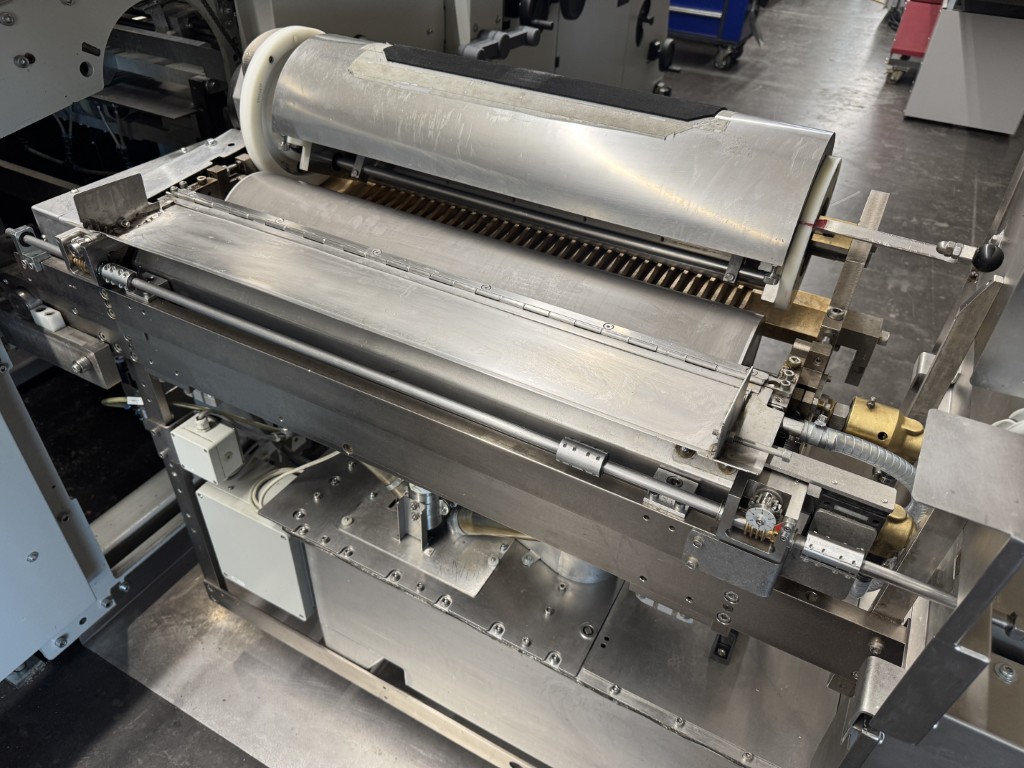

• moveable gluing station for processing hot-glue with glue preparation unit in the premelter, heated glue application roller and scraper roller
• cloth cylinder with grippers and exchangeable plates for rubber pad (5 pieces 500 mm wide and 5 pieces 720 mm wide, incl. 10 pieces of rubber pads)
• glue application adjustment from outside of the machine
• viscosity control device for automatic water supply to ensure constant glue viscosity with pump
• pressing roller device for crease-free connection of the cover material with boards and spine strip
• device for producing padded cases
• automatic case counter
• single case request for control purposes done from the operating side
• stack delivery

Special equipment:
• board cutting device PS

Benefits

The Kolbus DA 260 case-maker is a professional machine engineered to exacting specifications.
Simple, one-man operation and fast and simple set-up contribute to the DA 260’s high productivity.

Features

The Kolbus DA 260 was also engineered to be exceptionally operator-friendly.
Input and output zones are at an operator-friendly height and ergonomically efficient.
Make-ready is quick and easy with semi-automated settings.
The operator always has a clear view of the whole machine.
The machine is also ideal for small-batch or custom products using multi-section and thin boards.
