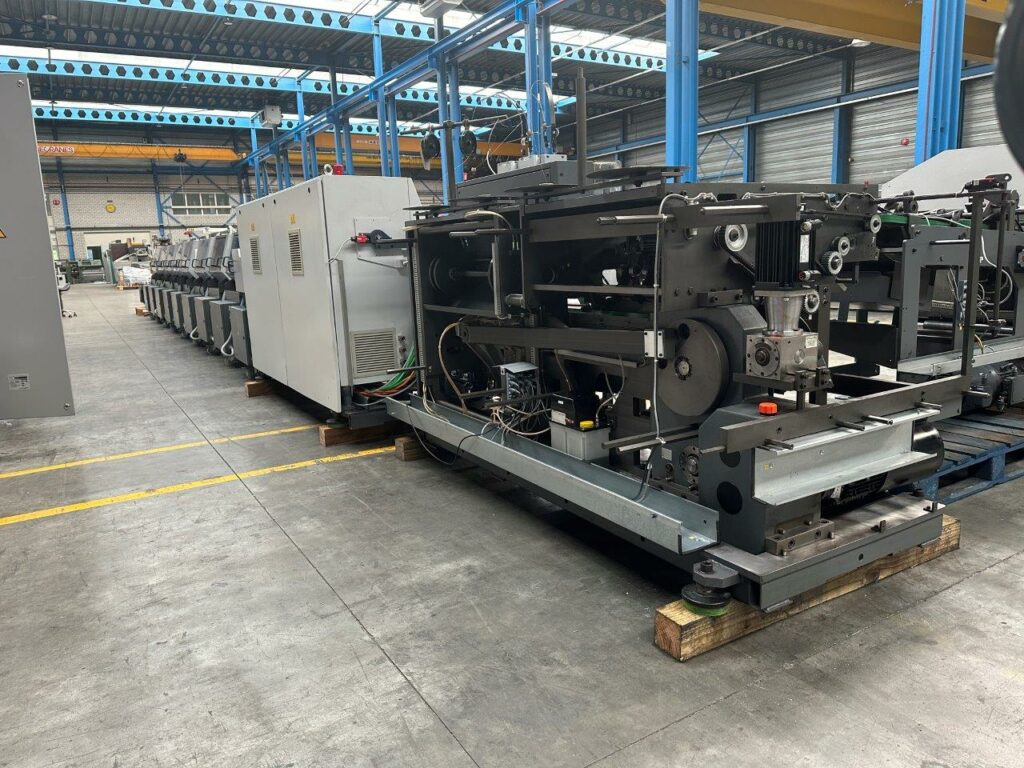

Heidelberg ST 400 Saddle Stitcher

Saddle stitcher

Heidelberg Stitchmaster ST 400

Year 2005

Operation / Control

– Colour monitor

Feeders

– Number of chain stations: 9

– Horizontal signature feeders: 2 x TAL 400

– Vertical signature feeders: 6 x TAS 400

– Cover feeder: UFA 400

– Excluding pump(s)

Stitching unit

Heidelberg Stitchmaster ST 400

– Thickness control

– Stitching heads: 2

– Delivery to the left

– Reject gate, for incomplete products

Trimmer

Heidelberg TR 400

– Sets of knives: 2

Delivery

Heidelberg CHA

– Compensating stacker

– Delivery to the left
