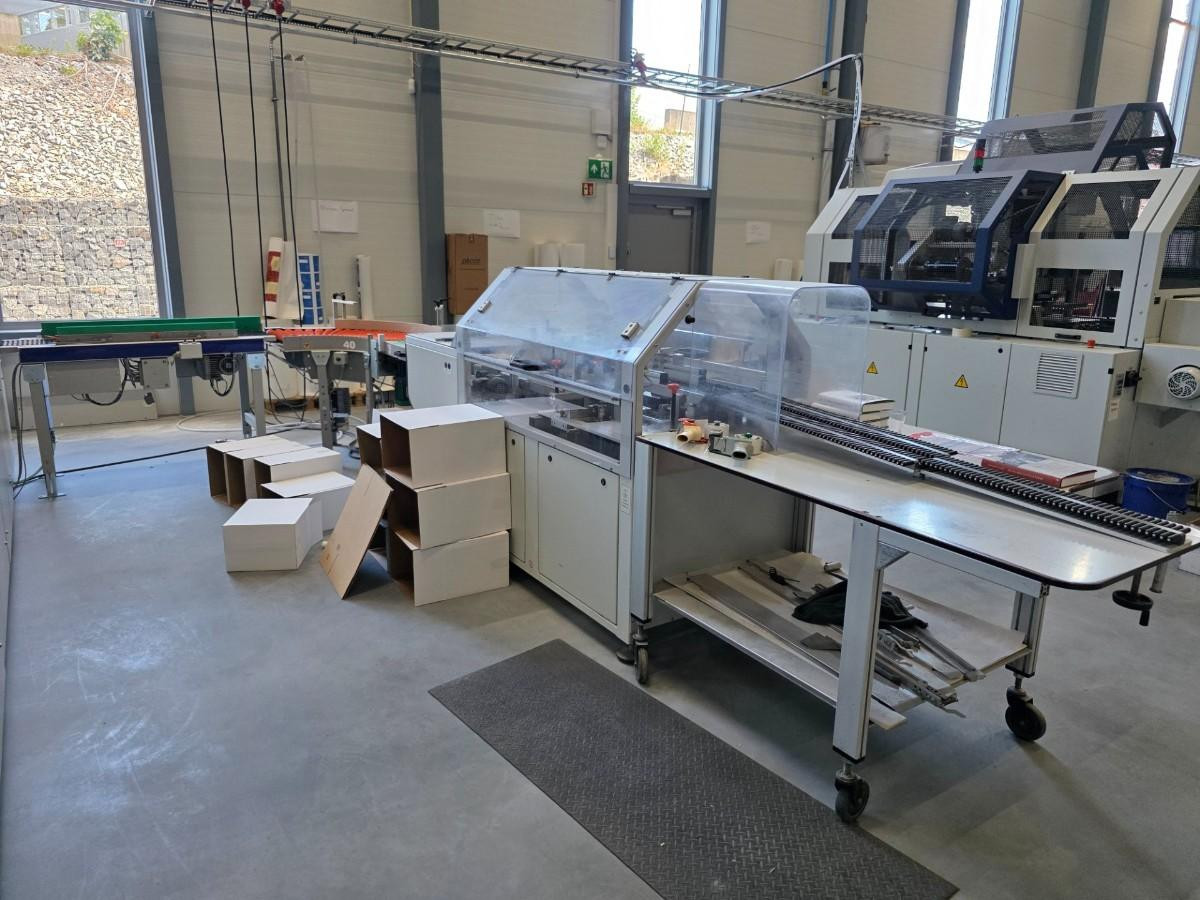

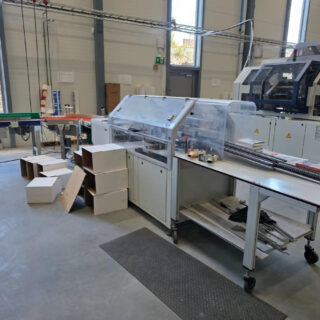

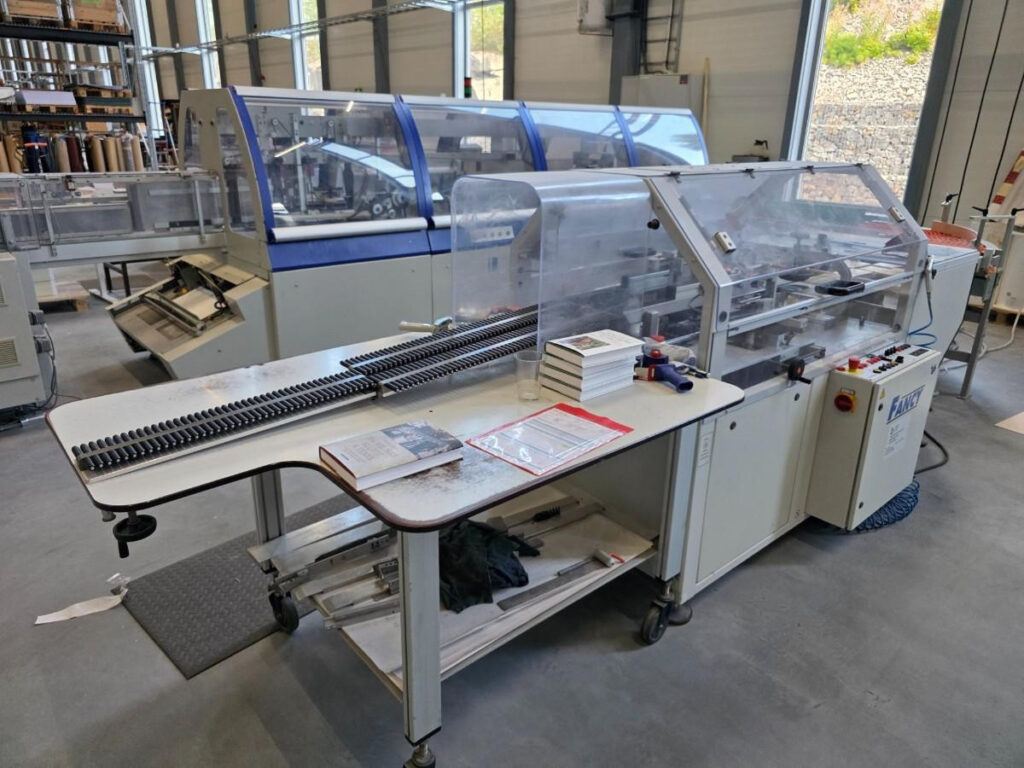

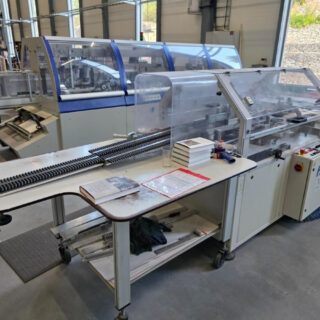

THEODOR ATTENBERGER Book and Brochure Stacker FANCY

Configuration:
• prestacker “Doppler”
• roller delivery with integrated work surface

Technical specifications:
mechanical speed with “Doppler”: up to 7.200 cycles/h (with individual product inlet, up to 35
mm product thickness)
product rotation through: 180°
spine offset facility up to: 10 mm
stacking height max.: 140 mm
product height max.: 330 mm
product height min.: 140 mm
product width max.: 240 mm
product width min.: 100 mm
product thickness max.: 70 mm
product thickness min.: 2 mm
