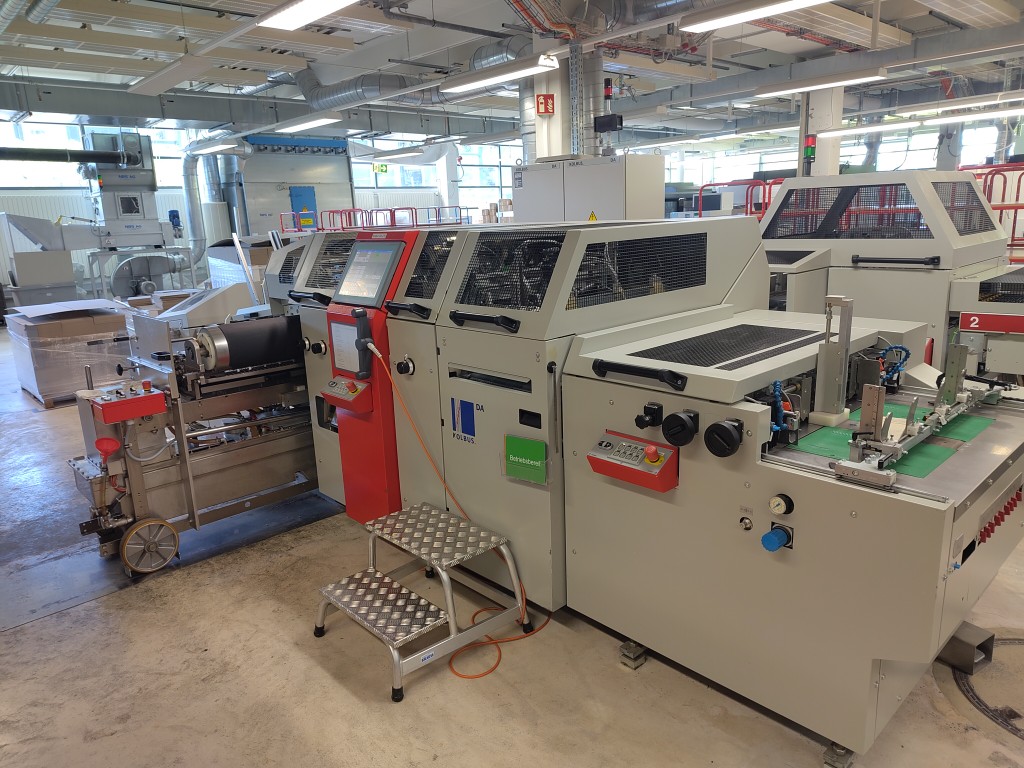

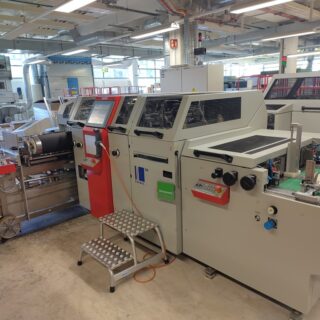

Kolbus DA 270 Bookjet Edition Case-maker

For fully automatic production of book cases, files, display cards, calendar backs, game boards or luxury packaging.

Standard equipment:
• Copilot system with touchscreen
• board magazine for manual loading
• cloth feeder for non-stop operation with pile magazine, max. stacking height 160 mm
• miss cloth control during the separation process
• counter stacker delivery with following roller conveyor

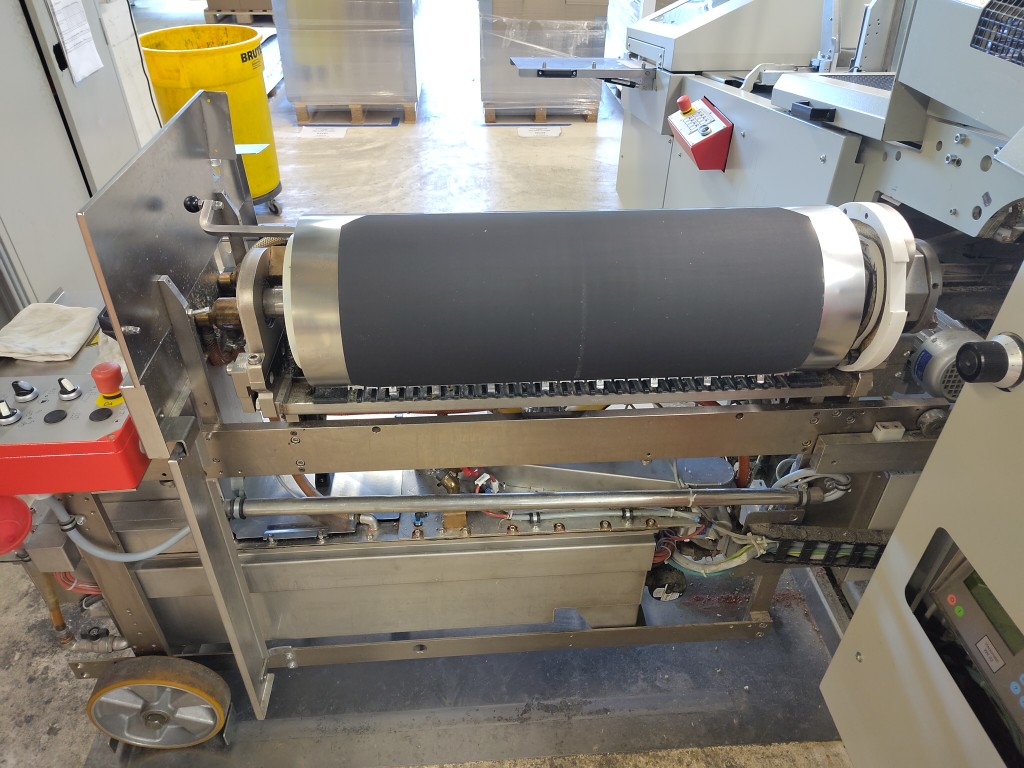

• moveable gluing station for processing hot-glue with glue preparation unit in the premelter, heated glue application roller and scraper roller

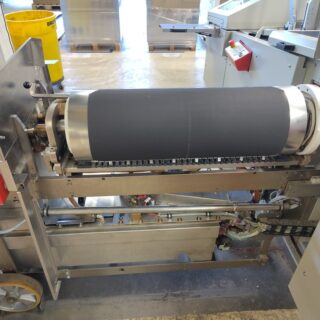

• cloth cylinder with grippers and exchangeable plates for rubber pad (incl. 5 x 500 mm, 5 x 720 mm and 10 x rubber pad)
• viscosity control device for automatic water supply to ensure constant glue viscosity with pump and water tank for manual filling
• device for inside lining with hot-glue
• pressing roller device for crease-free connection of the cover material with boards and spine strip
• device for producing padded cases
• automatic case counter
• programmable automatic settings, motorized adjustments, indication of production faults
• single case request for control purposes done from the operating side
• servo-controlled drive technology based on Siemens SIMOTION D

Special equipment:
• without center strip roll device
• with board center strip magazine, boards height min. 130 mm
• board center strip cutting device (cross center strip) for processing digital print products of varying center-strip, device for cutting rigid center board strips to width,
with possible width variation from cycle to cycle
Counter: only approx. 4,7 million book cases

Option:

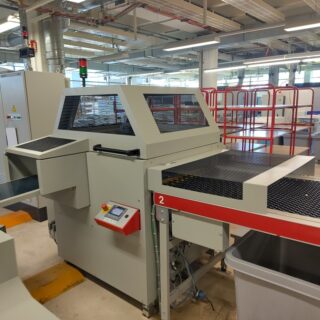

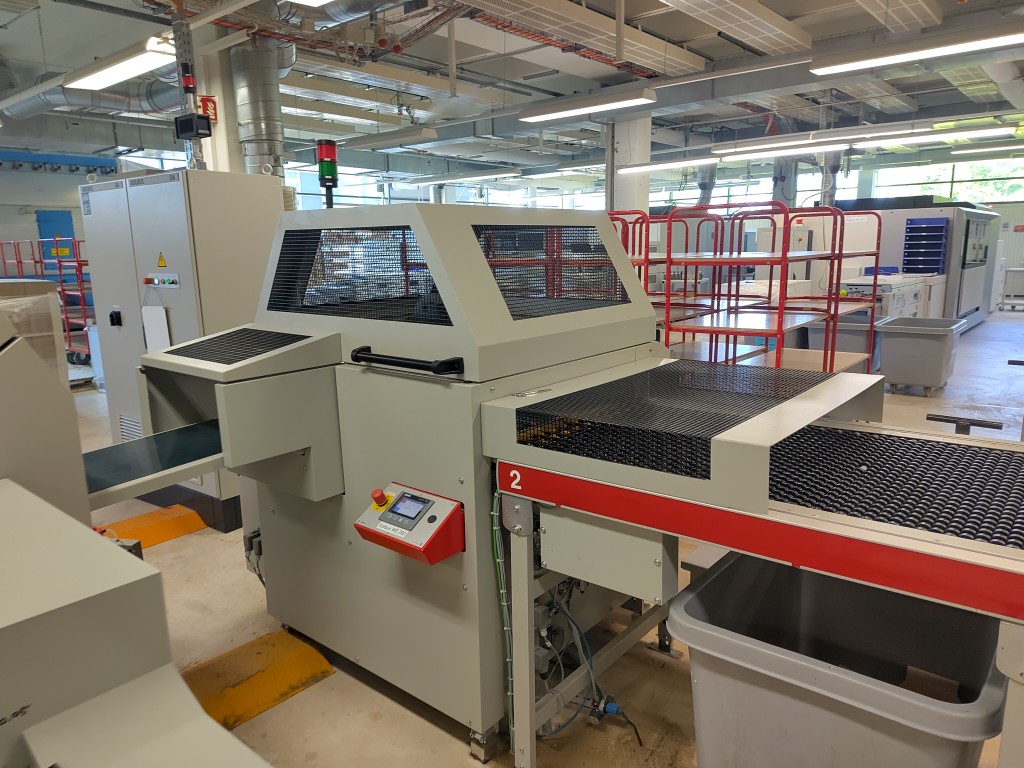

KOLBUS Turning Device WE 260
year 2017
For coupling with a down-stream machine.
Configuration:
• inline production
• through-feed mode
• transfer conveyor upstream the turning device, length approx. 975 mm
