DA 270 Bookjet Edition Case-maker
Kolbus
Made in 2019, ref. 13103
Model:
DA 270 Bookjet Edition Case-maker
Manufacturer:
Kolbus
Ref #:
13103
Year Manufactured:
2019
Details:

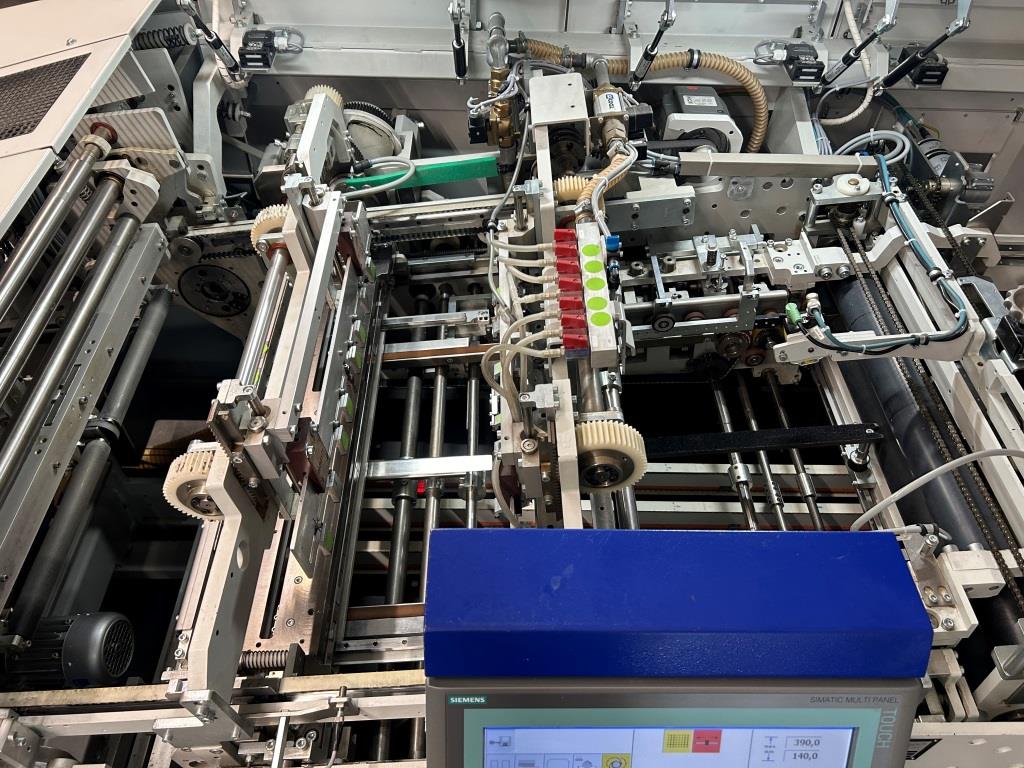

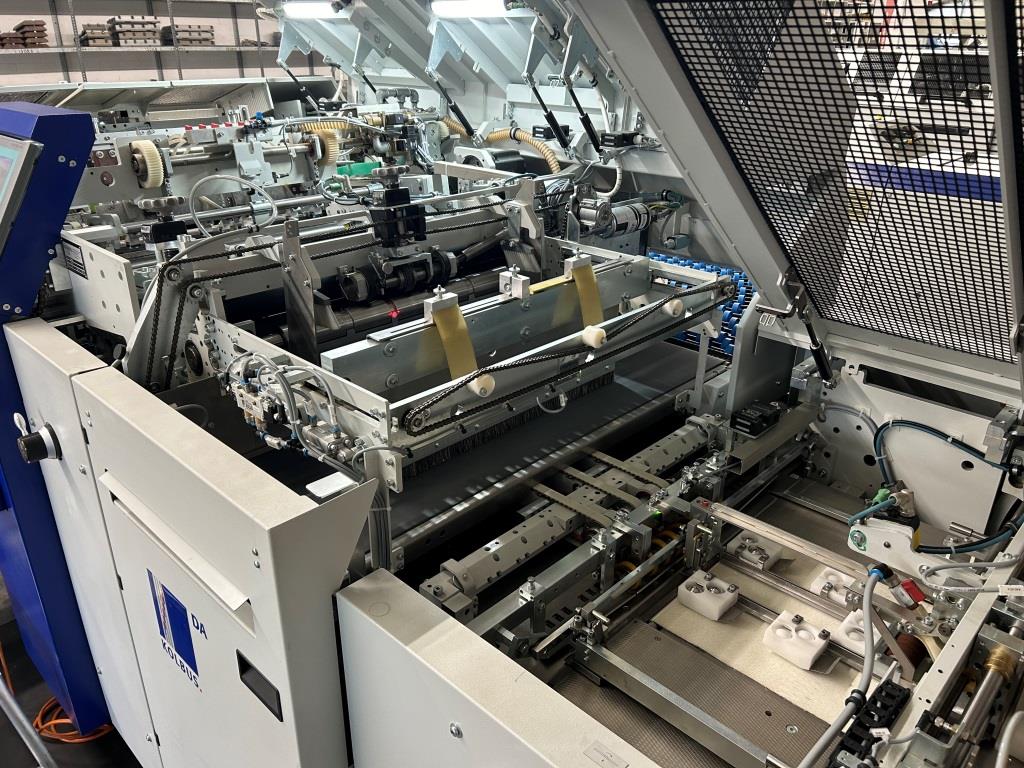

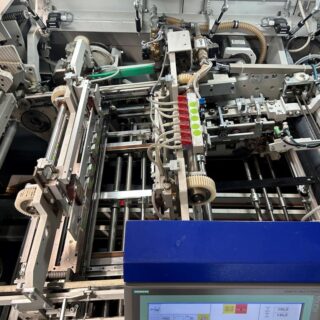

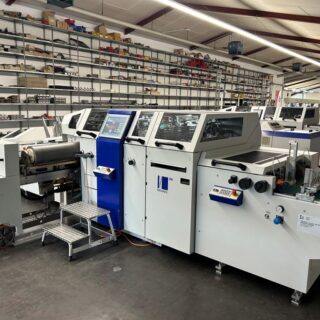

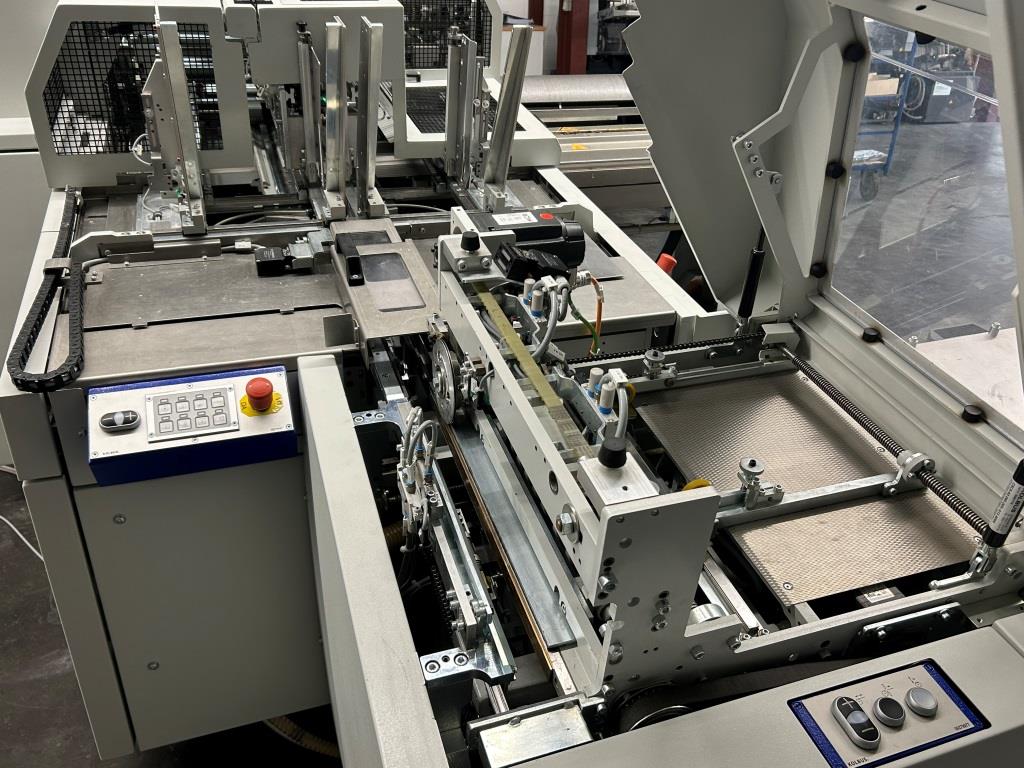

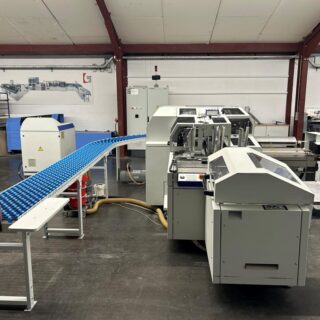

Kolbus DA 270 Bookjet Edition Case-maker

For fully automatic production of book cases, files, display cards, calendar backs, game boards or luxury packaging.
Standard equipment:
– Copilot system with touchscreen

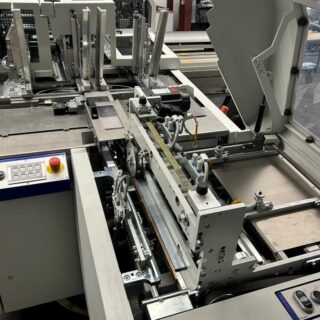

– board magazine for manual loading
– cloth feeder for non-stop operation with pile magazine, max. stacking height 160 mm
– miss cloth control during the separation process

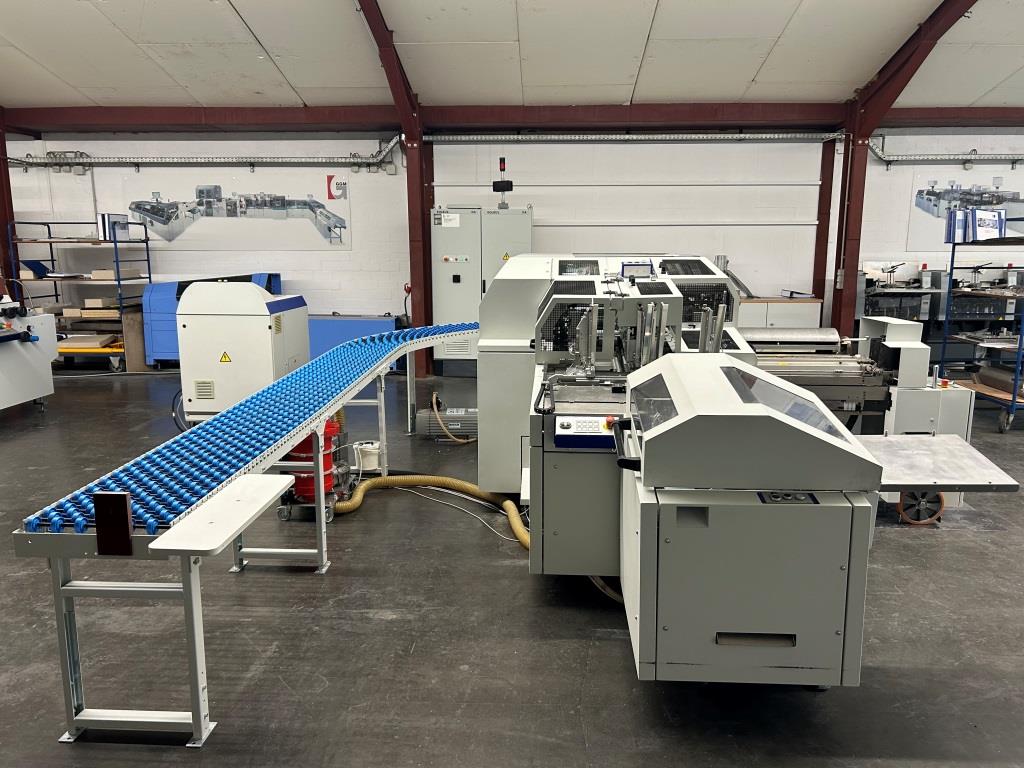

– counter stacker delivery with following roller conveyor
– cloth cylinder with grippers and exchangeable plates for rubber pad (5 pieces 500 mm wide and 5 pieces 720 mm wide, incl. 10 pieces of rubber pads)
– center strip pressing device (head / tail)
– pressing roller device for crease-free connection of the cover material with boards and spine strip
– device for producing padded cases
– automatic case counter
– programmable automatic settings, motorized adjustments, indication of production faults
– single case request for control purposes done from the operating side

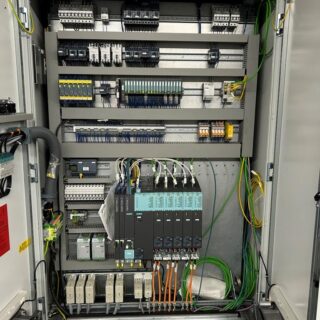

– servo-controlled drive technology based on Siemens SIMOTION D

Additional equipment
– without center strip roll device
– board center strip cutting device (cross center strip)
For processing digital print products of varying centre-strip.
Device for cutting rigid centre board strips to width, with possible
width variation from cycle to cycle.
– with data coupling via AFS 702.W with input and output code reader
for digital print finishing
– processing of Hotmelt

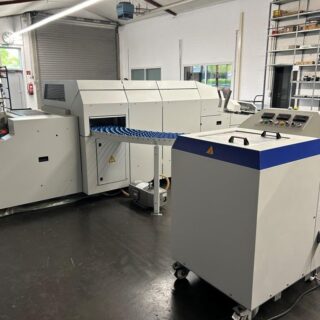

– with premelter LH 375.B

Production counter only approx. 1,6 Million products

Contact Us About:

Ref #: 13103
